TURF RAKE
technical SPECIFICATIONS
600HD
DIMENSIONS:
H: 7’6″ L: 13’1″ W: 7’8″
H: 2,3 m x L: 4,0m W: 2,3m
WEIGHT:
Approximately 3800 lbs
Approximately 1800 kg
CLEANING WIDTH:
7 feet
2,14 m
CLEANING DEPTH:
Adjustable to 4″
Adjustable to 15 cm
OPERATING SPEED:
1.0 to 15.0 miles per hour
1 to 25 km/hr
DEBRIS REMOVED:
Stones ¼” to 4″ in diameter, sod, roots, wood, branches and broken glass.
Stones .635 cm to 10 cm in diameter, sod, roots, wood, branches and broken glass
PERFORMANCE:
Cleans up to 9 acres per hour
Cleans up to 32,000 m²/h
HOPPER:
3 cubic yards (4,500 lbs cap)
2,3 cubic meters (2000 kg cap.)

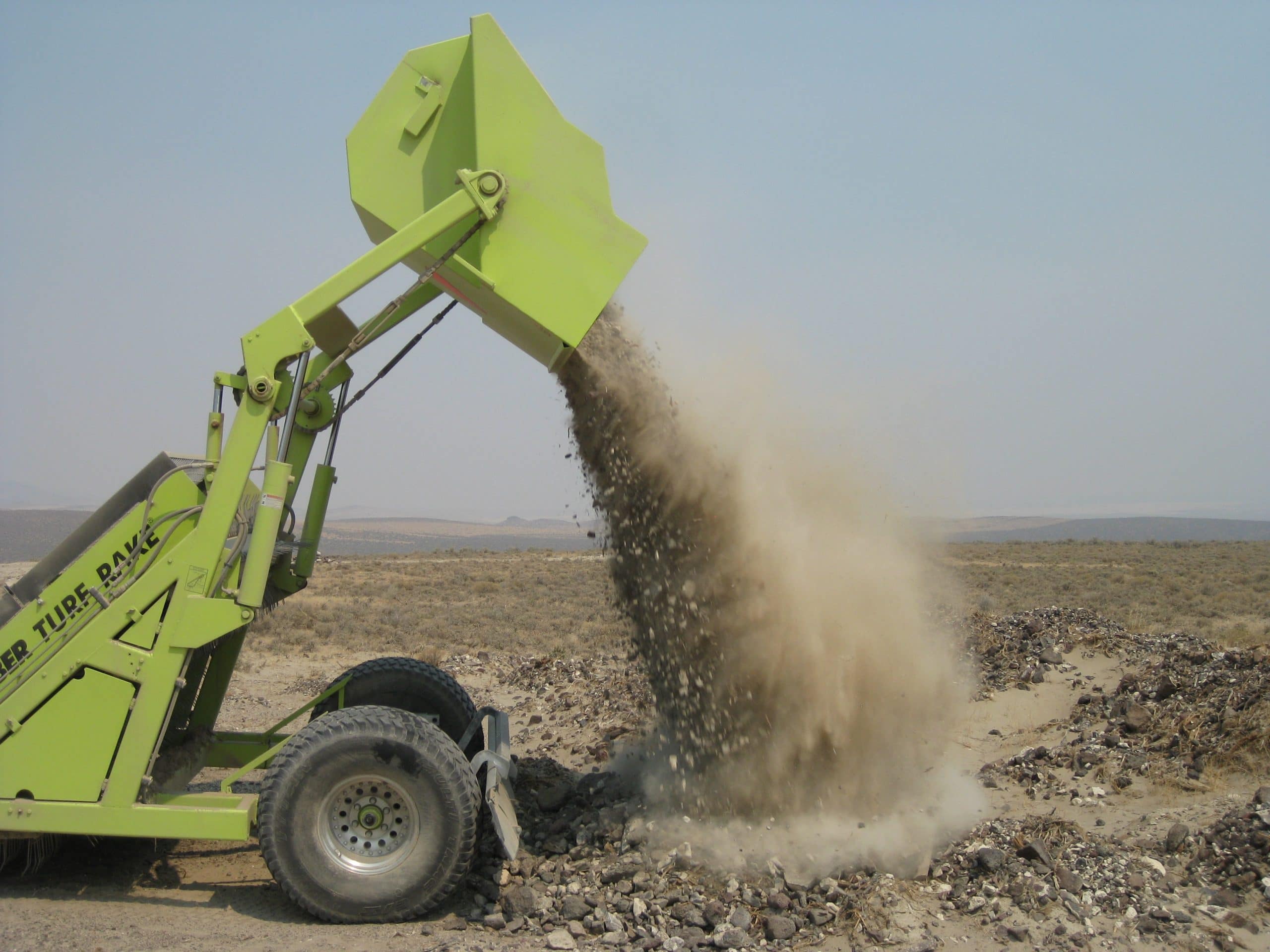

DUMP HEIGHT:
9 feet
2,75 meters
TIRES:
36 x 13.5 x 15 high flotation design
91.4 x 34.3 x 38.1 cm high flotation design
CONEYOR:
Of bar flight type, covered with continuous 6′ wide belt, with stainless steel spring tines mounted on it.
Of bar flight type, covered with continuous 1,8 m wide belt, with stainless steel spring tines mounted on it.
HYDRAULIC DRIVE:
Completely sealed and protected by the full flow filter. Large capacity spline mounted pump, hydraulic motor, flow control, and built-in overflow protection.
Completely sealed and protected by the full flow filter. Large capacity spline mounted pump, hydraulic motor, flow control, and built-in overflow protection.
HYDRAULIC FLOW:
12 gallons/ minute
45 liters/minute
HYDRAULIC CAP:
16 gallons
61 liters
CYLINDERS:
Lift 3″ x18″ single acting Trip 2′ x 5′ single acting
Lift 7.62 cm x 45.72cm single acting .60 m x 1.52m single acting
PAINT:
Dupont IMRON Polyurethane enamel
Dupont IMRON Polyurethane enamel
TRACTOR:
60 PTO horsepower 4-wheel drive agricultural type tractor with 30″ rear wheels.
60 PTO horsepower 4-wheel drive agricultural type tractor with 76cm rear wheels.
OTHER TRACTOR REQUIREMENTS:
540 RPM rear PTO, 3-point hitch and depending on model and options, up to two remote hydraulic valves with raise, hold and float positions. Larger or smaller tractors may be used depending on beach conditions.
540 RPM rear PTO, 3-point hitch and depending on model and options, up to two remote hydraulic valves with raise, hold and float positions. Larger or smaller tractors may be used depending on beach conditions.
400HD
DIMENSIONS:
H: 7’3″ L: 11’9″ W: 7’6″
H: 2,2 m x L: 3,6 x W: 2,3 m
WEIGHT:
Approximately 2700 lbs
Approximately 1225 kg
CLEANING WIDTH:
6 feet
1.8 m
CLEANING DEPTH:
Adjustable to 4″
Adjustable to 15 cm
OPERATING SPEED:
1.0 to 15.0 miles per hour
1 to 25 km/hr
DEBRIS REMOVED:
Stones ¼” to 4″ in diameter, sod, roots, wood, branches and broken glass.
Stones .635 cm to 10 cm in diameter, sod, roots, wood, branches and broken glass
PERFORMANCE:
Cleans up to 7 acres per hour
Cleans up to 20,000 m²/h
HOPPER:
2 cubic yards (3,500 lbs cap)
1.52 cubic meters (1600 kg cap.)
DUMP HEIGHT:
9 feet
2,75 meters
TIRES:
31 x 13.5 x 15 high flotation design
78.7 x 34.3 x 38.1 cm high flotation design
CONEYOR:
Of bar flight type, covered with continuous 4′ wide belt, with stainless steel spring tines mounted on it.
Of bar flight type, covered with continuous 1,2 m wide belt, with stainless steel spring tines mounted on it.
HYDRAULIC DRIVE:
Completely sealed and protected by the full flow filter. Large capacity spline mounted pump, hydraulic motor, flow control, and built-in overflow protection.
Completely sealed and protected by the full flow filter. Large capacity spline mounted pump, hydraulic motor, flow control, and built-in overflow protection.
HYDRAULIC FLOW:
12 gallons/ minute
45 liters/minute
HYDRAULIC CAP:
11 gallons
42 liters
CYLINDERS:
Lift 3″ x18″ single acting Trip 2′ x 5′ single acting
Lift 7.62 cm x 45.72cm single acting .60 m x 1.52m single acting
PAINT:
Dupont IMRON Polyurethane enamel
Dupont IMRON Polyurethane enamel
TRACTOR:
35 PTO horsepower 4-wheel drive agricultural type tractor with 28″ rear wheels.
35 PTO horsepower 4-wheel drive agricultural type tractor with 71cm rear wheels.
OTHER TRACTOR REQUIREMENTS:
540 RPM rear PTO, 3-point hitch and depending on model and options, up to two remote hydraulic valves with raise, hold and float positions. Larger or smaller tractors may be used depending on beach conditions.
540 RPM rear PTO, 3-point hitch and depending on model and options, up to two remote hydraulic valves with raise, hold and float positions. Larger or smaller tractors may be used depending on beach conditions.
400
DIMENSIONS:
H: 4’5″ L: 9’10” W: 7’6″
H: 1,4 m x L: 3,0 m x W: 2,3 m
WEIGHT:
Approximately 1900 lbs
Approximately 860 kg
CLEANING WIDTH:
7 feet
1.8 m
CLEANING DEPTH:
Adjustable to 4″
Adjustable to 15 cm
OPERATING SPEED:
1.0 to 15.0 miles per hour
1 to 25 km/hr
DEBRIS REMOVED:
Stones ¼” to 4″ in diameter, sod, roots, wood, branches and broken glass.
Stones .635 cm to 10 cm in diameter, sod, roots, wood, branches and broken glass
PERFORMANCE:
Cleans up to 5 acres per hour
Cleans up to 16,000 m²/h
HOPPER:
1 cubic yards (2,400 lbs cap)
,75 cubic meters (1100 kg cap.)
DUMP HEIGHT:
Ground
Ground
TIRES:
31 x 13.5 x 15 high flotation design
78.7 x 34.3 x 38.1 cm high flotation design
CONEYOR:
Of bar flight type, covered with continuous 4′ wide belt, with stainless steel spring tines mounted on it.
Of bar flight type, covered with continuous 1,2 m wide belt, with stainless steel spring tines mounted on it.
HYDRAULIC DRIVE:
Completely sealed and protected by the full flow filter. Large capacity spline mounted pump, hydraulic motor, flow control, and built-in overflow protection.
Completely sealed and protected by the full flow filter. Large capacity spline mounted pump, hydraulic motor, flow control, and built-in overflow protection.
HYDRAULIC FLOW:
12 gallons/ minute
45 liters/minute
HYDRAULIC CAP:
11 gallons
42 liters
CYLINDERS:
Trip 1″ x 10″ single acting
Trip 2.54cm x 25.40cm single acting
PAINT:
Dupont IMRON Polyurethane enamel
Dupont IMRON Polyurethane enamel
TRACTOR:
30 PTO horsepower 4-wheel drive agricultural type tractor with 28″ rear wheels.
30 PTO horsepower 4-wheel drive agricultural type tractor with 71cm rear wheels.
OTHER TRACTOR REQUIREMENTS:
540 RPM rear PTO, 3-point hitch and depending on model and options, up to two remote hydraulic valves with raise, hold and float positions. Larger or smaller tractors may be used depending on beach conditions.
540 RPM rear PTO, 3-point hitch and depending on model and options, up to two remote hydraulic valves with raise, hold and float positions. Larger or smaller tractors may be used depending on beach conditions.
