TURF RAKe service
REPLACING A TINE
Play Video about replacing a tine instructions video thumbnail
REQUIRED TOOLS
½” Ratchet Wrench
Cylinder Safety Support
A New Stainless Steel Tine
FREQUENCY
Only if a tine is damaged
QUESTIONS?
Contact a Barber team member at:
(800) 355-8318 or
hbarber@hbarber.com
getting started: 400HD, 600HD, 600XL
#1 On the HD Surf Rake Models (400HD, 600HD, 600XL), begin by raising the bucket all the way.

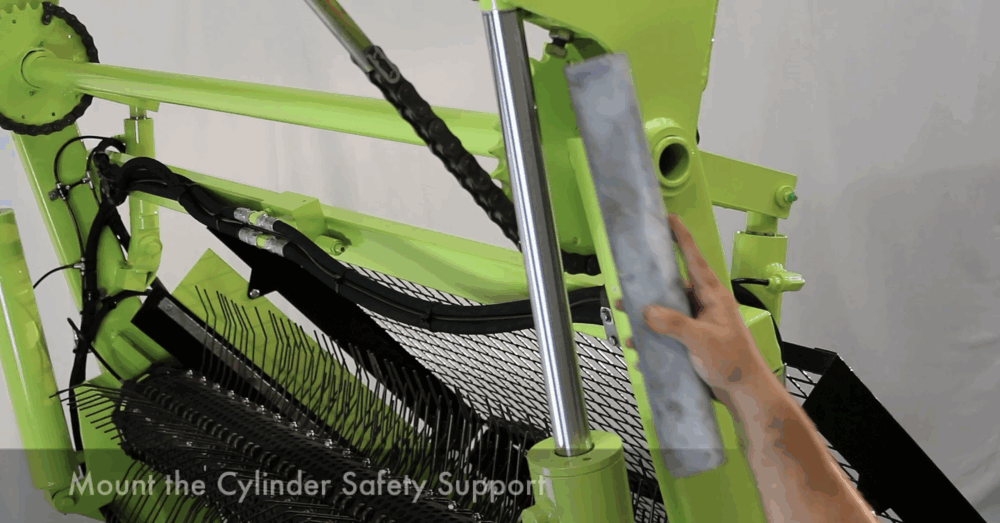

#2 Mount the safety support.

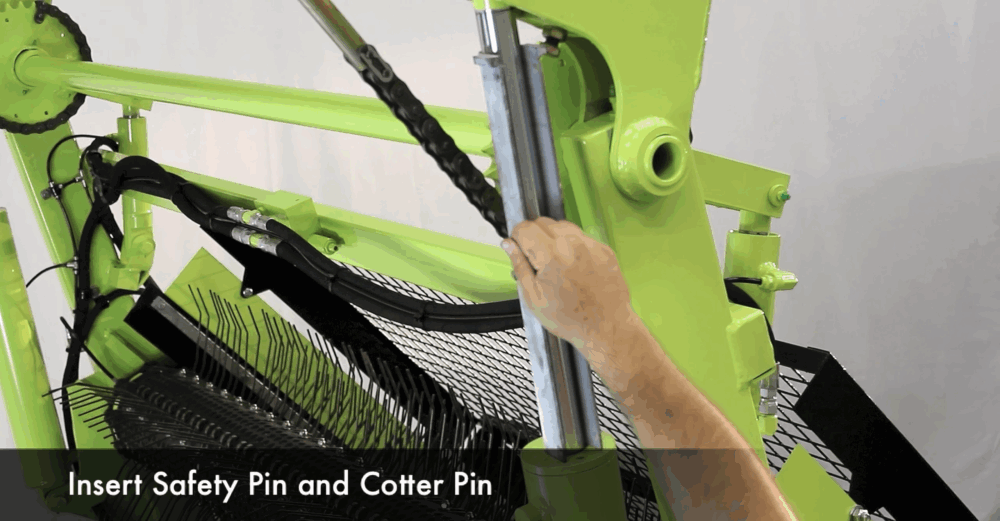

#3 Insert safety pin and cotter pin.

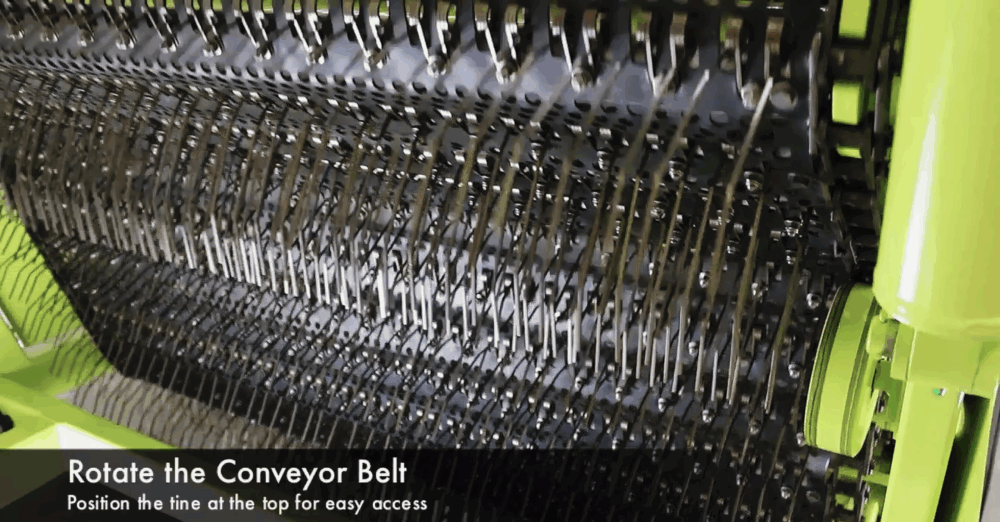

#6 Rotate the conveyor belt. Position the tine at the top for easy access.

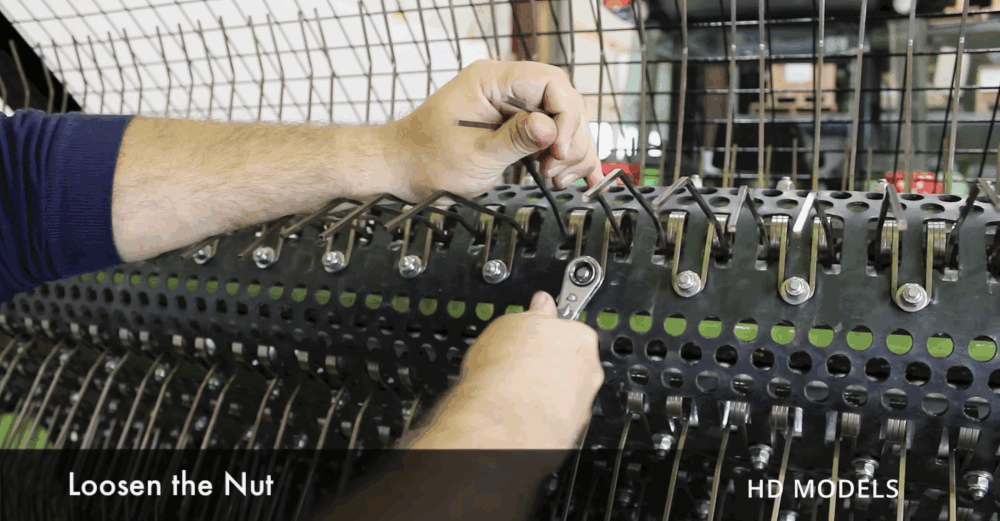

#7 Loosen the nut.
Geting started: surf rake 400

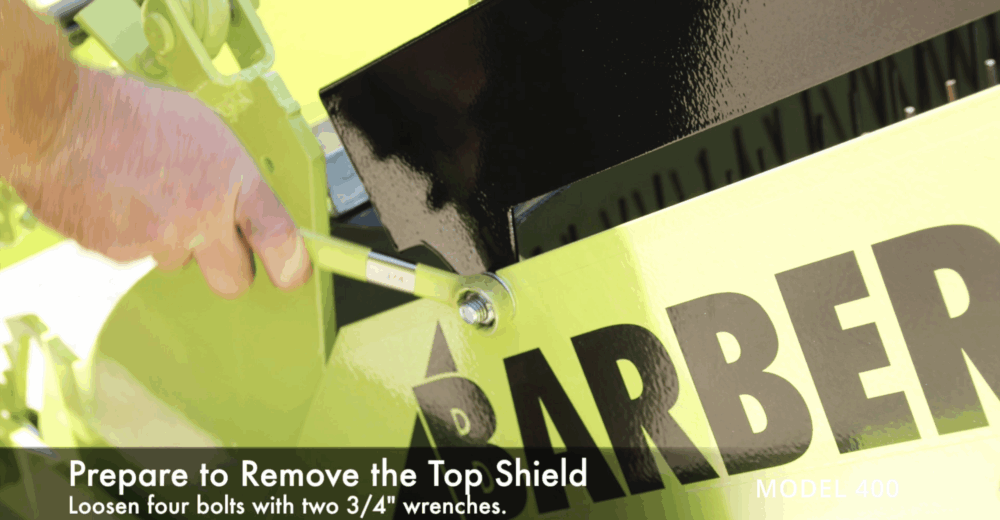

#1 Access the tines by removing the top shield by loosening the four bolts with two 3/4” wrenches.

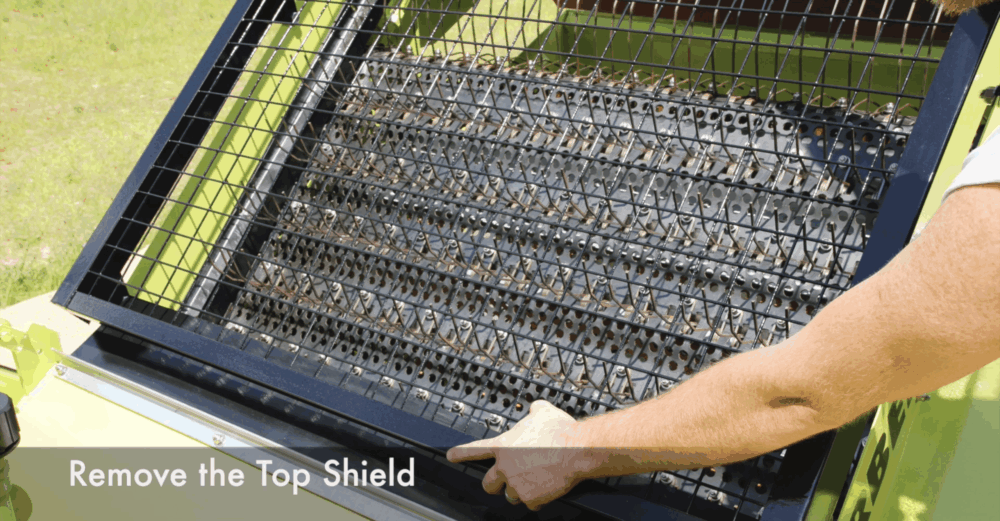

#5 Remove the top shield.

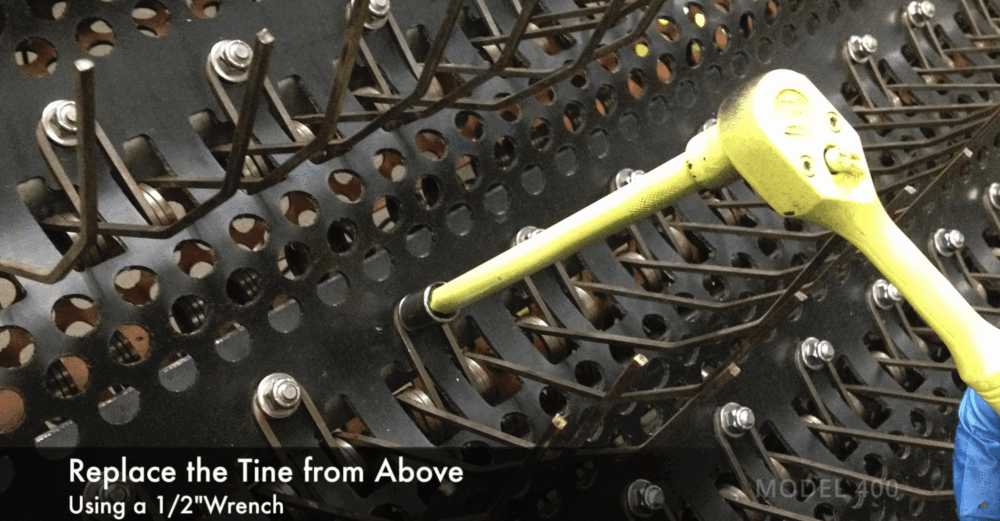

#8 Loosen the bolt that secures the tine from above using a 1 / 2” wrench.
replacing the tine: all models

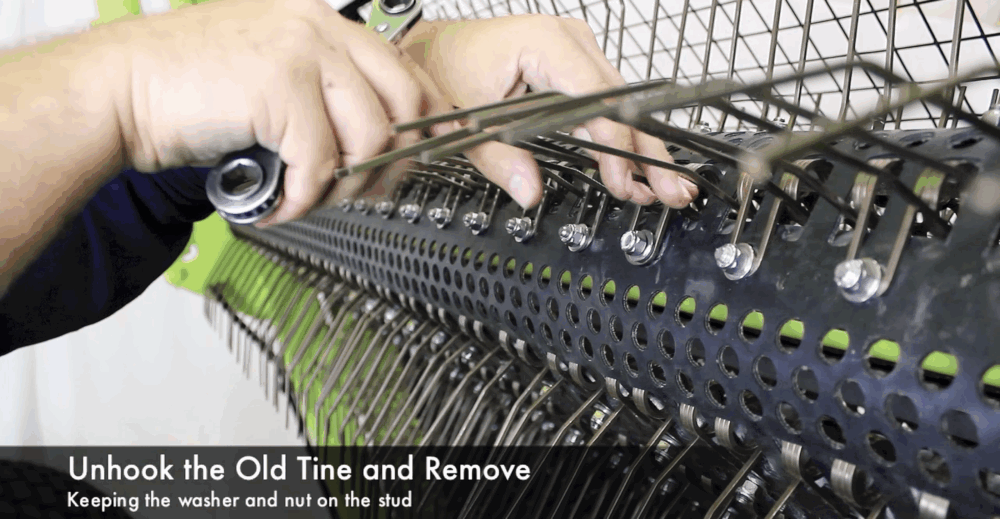

#9 Unhook the old tine and remove, keeping the washer and nut on the stud.

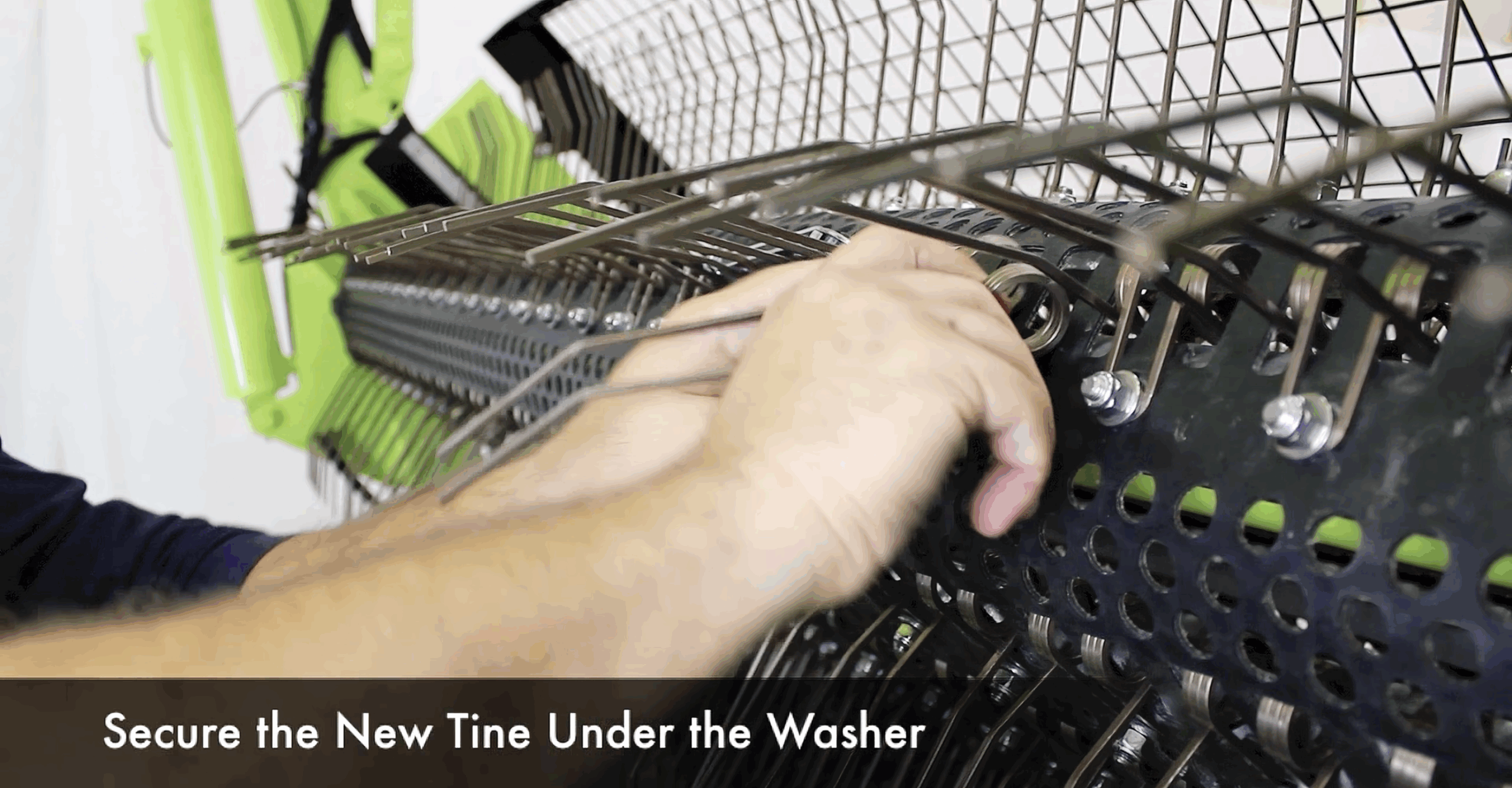

#10 Secure the new tine under the washer.
