ADJUSTING THE DUMP CHAIN

Play Video about adjusting the dump chains video thumbnail

REQUIRED TOOLS

1 1/8″ (29mm) Wrench

Adjustable Wrench

FREQUENCY

Check regularly and adjust as needed.

QUESTIONS?

Contact a Barber team member at:

(800) 355-8318   or

hbarber@hbarber.com



ADJUSTING THE DUMP CHAIN

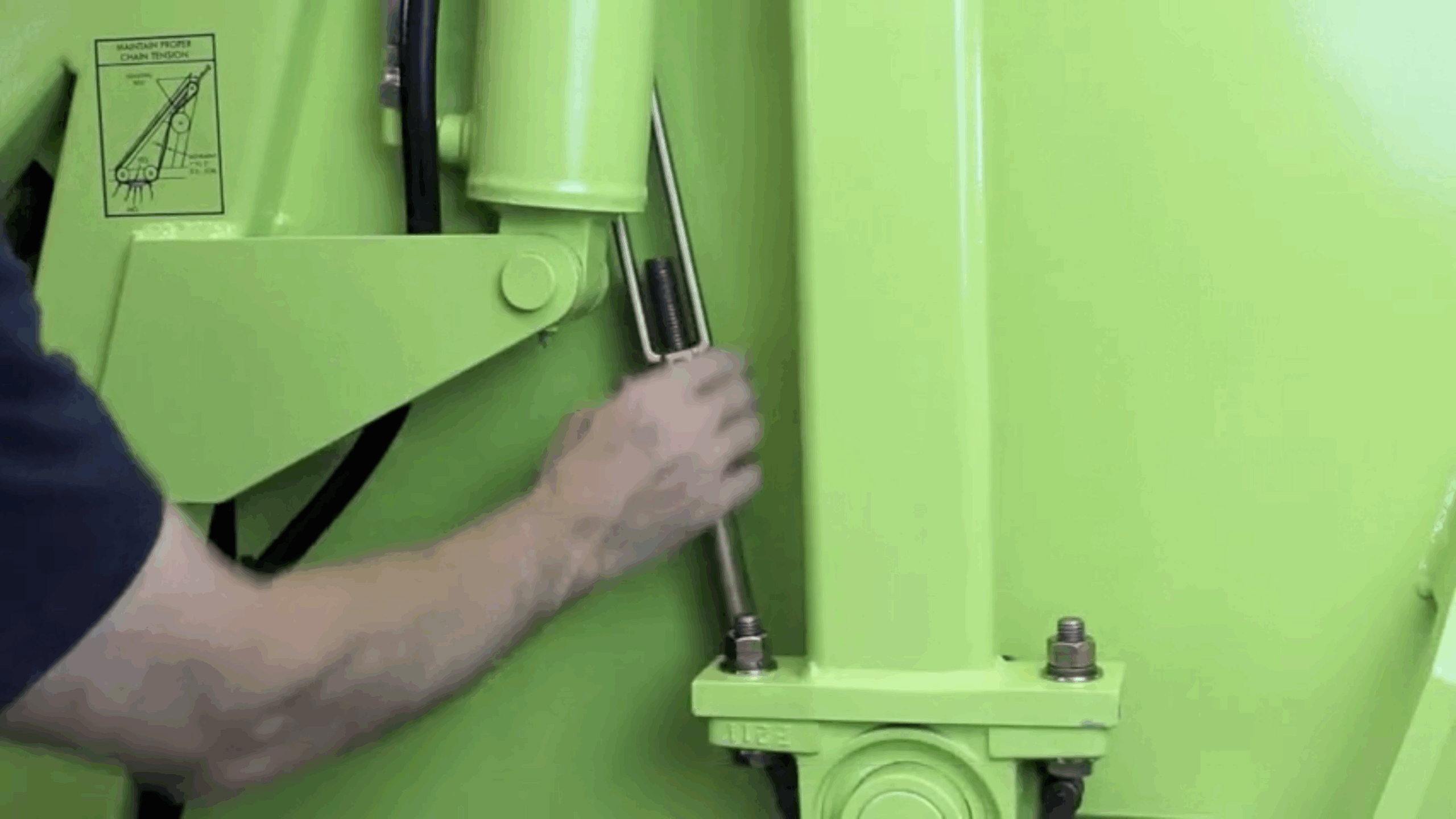

#1 Your Dump Chains need adjustment if they are loose.

#1 Your Dump Chains need adjustment if they are loose.

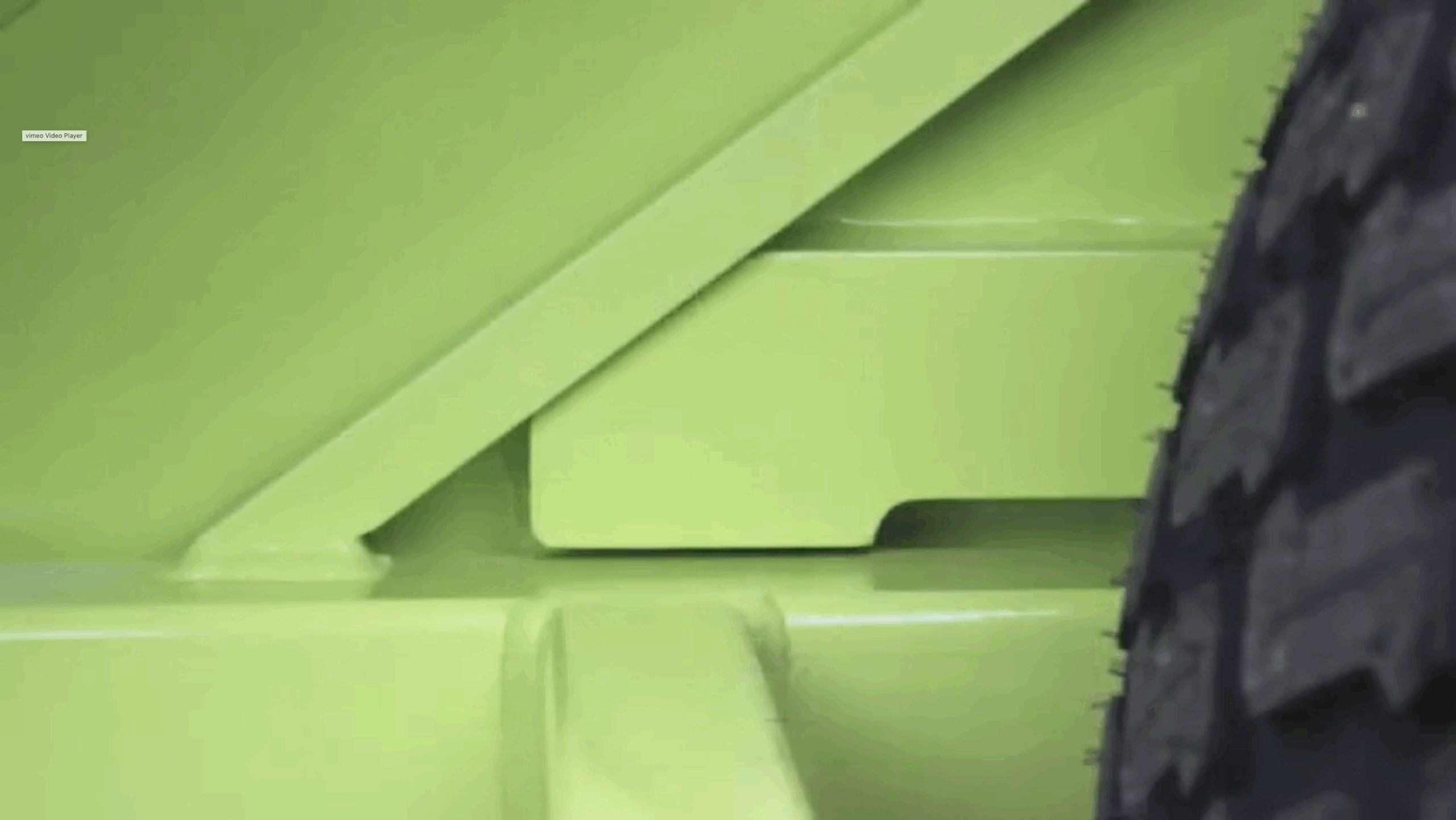

#2 They also need adjustment if the bucket does not rest on the bucket stop.

#2 They also need adjustment if the bucket does not rest on the bucket stop.

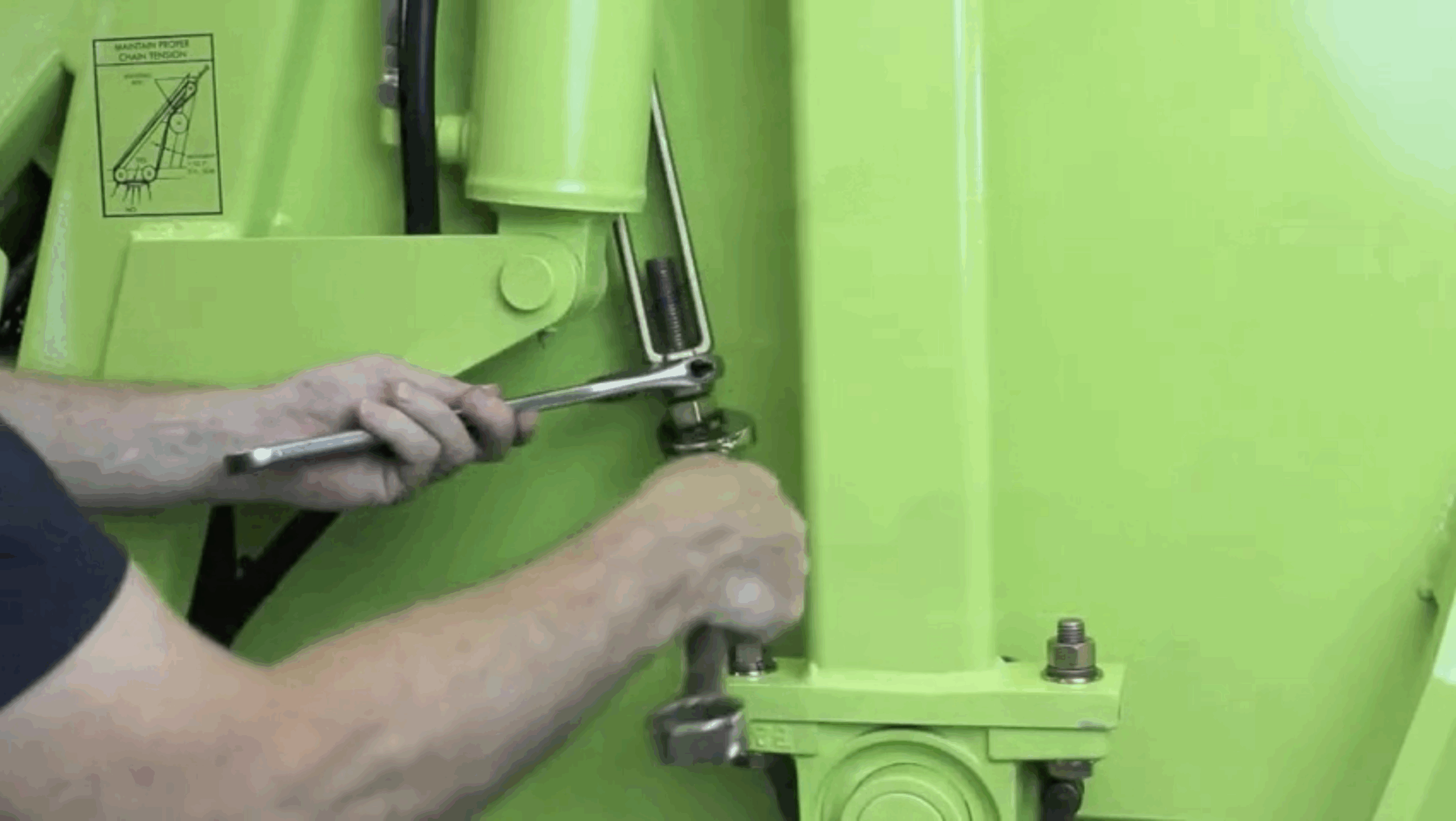

#3 To tighten the Dump Chains, start by loosening the jam-nut.

#3 To tighten the Dump Chains, start by loosening the jam-nut.

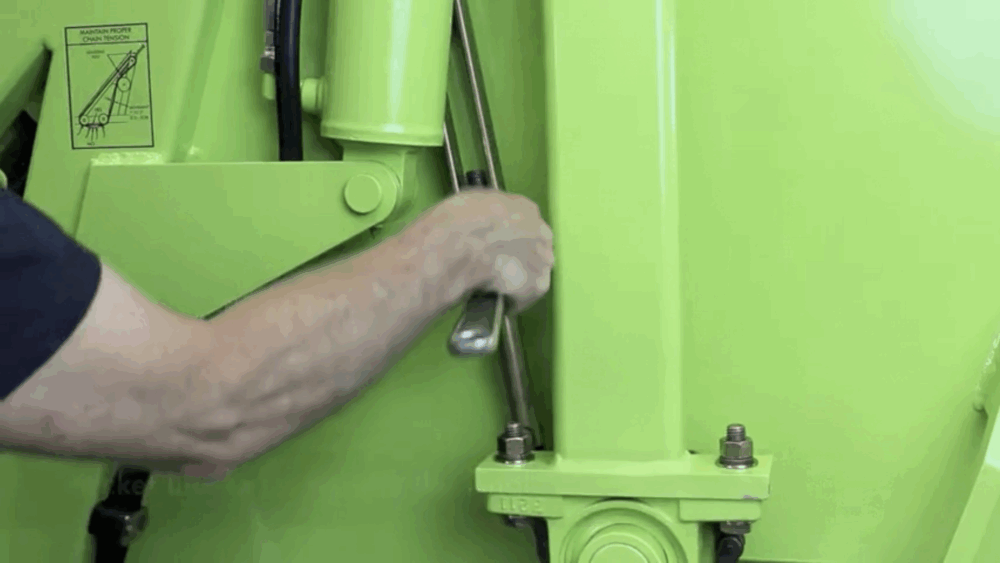

#4 Tighten the turnbuckle.

#4 Tighten the turnbuckle.

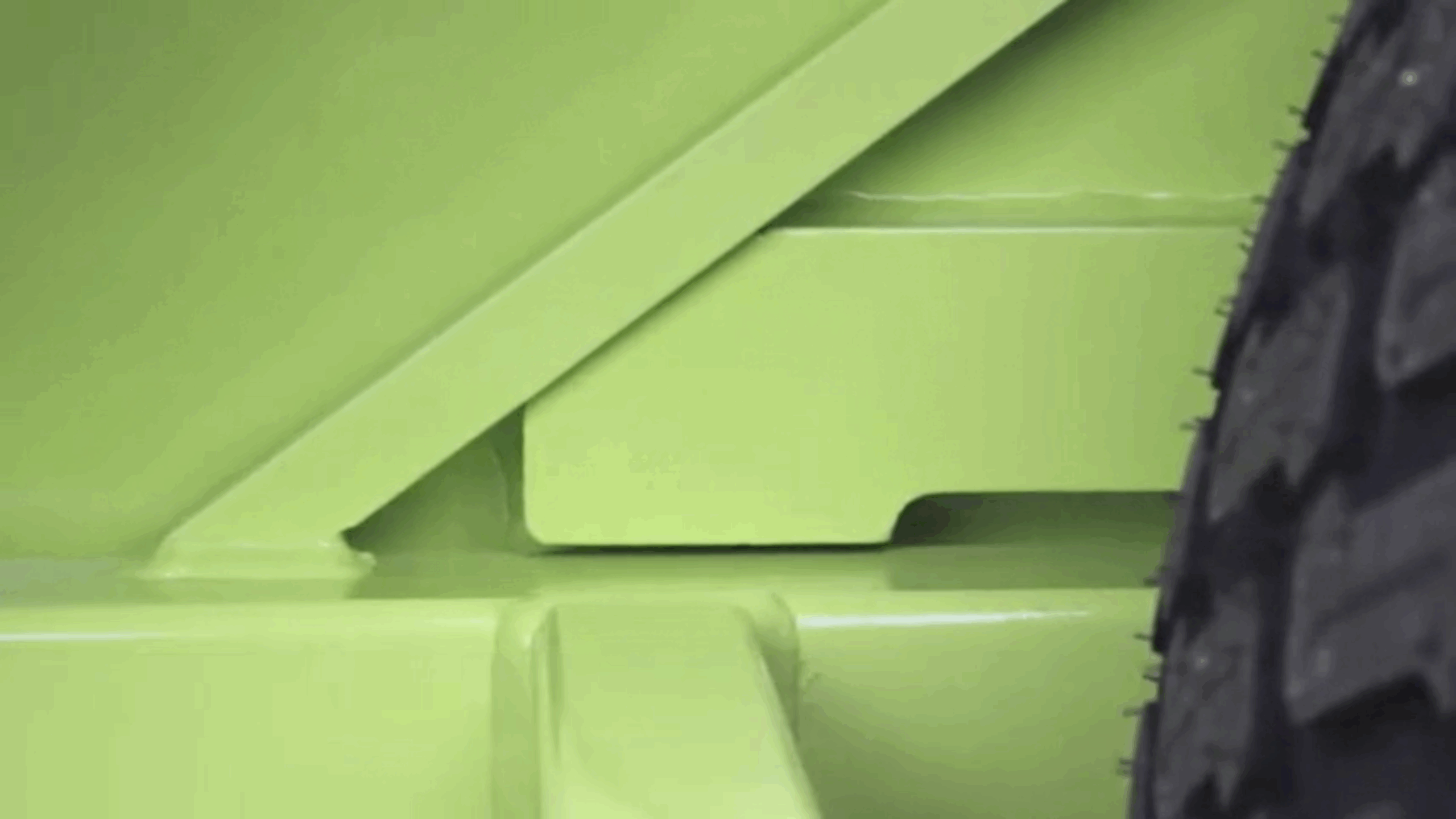

#5 Make sure the bucket block fits against the angle.

#5 Make sure the bucket block fits against the angle.

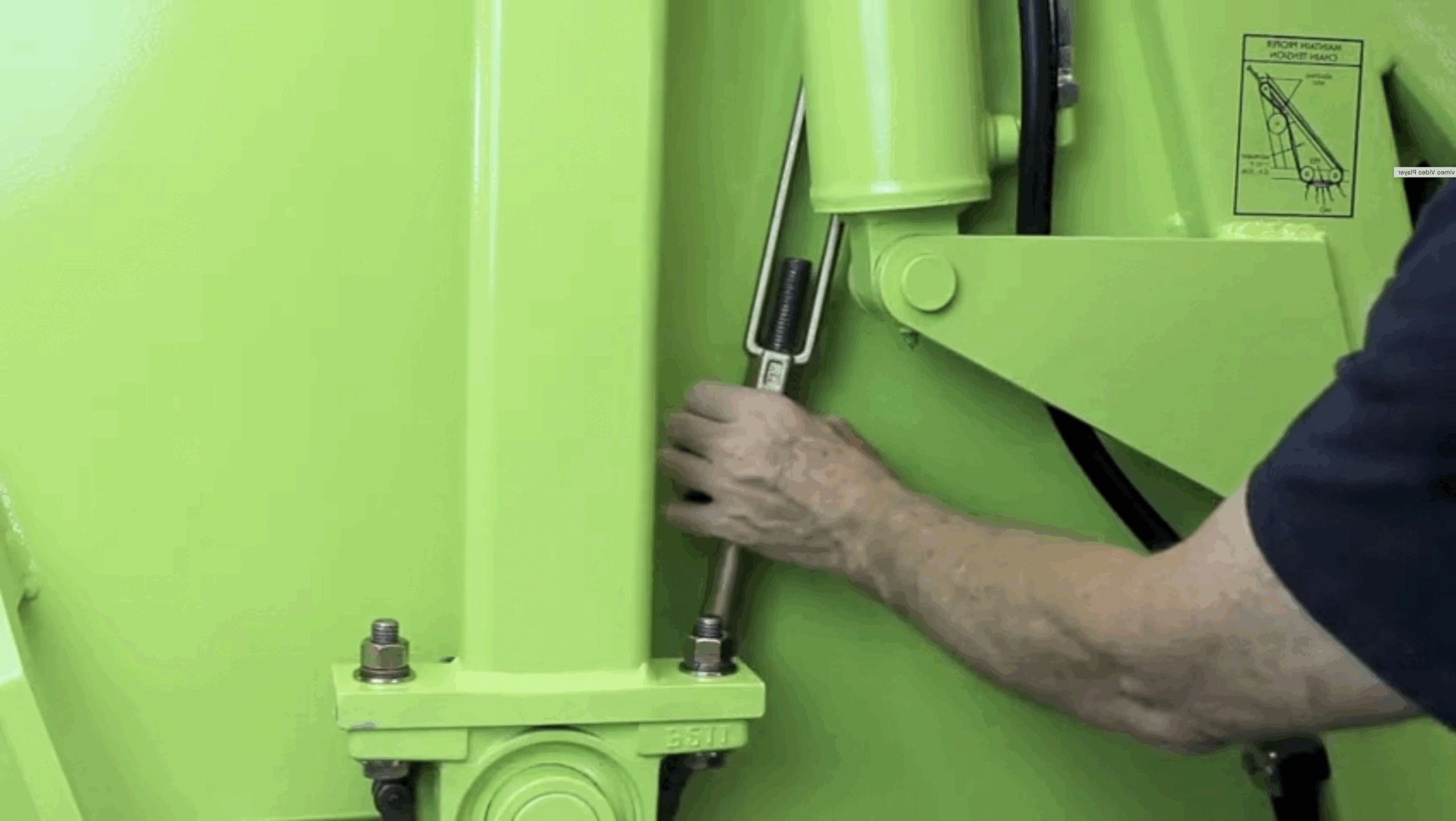

#6 Repeat on the other side until both sides are tight.

#6 Repeat on the other side until both sides are tight.

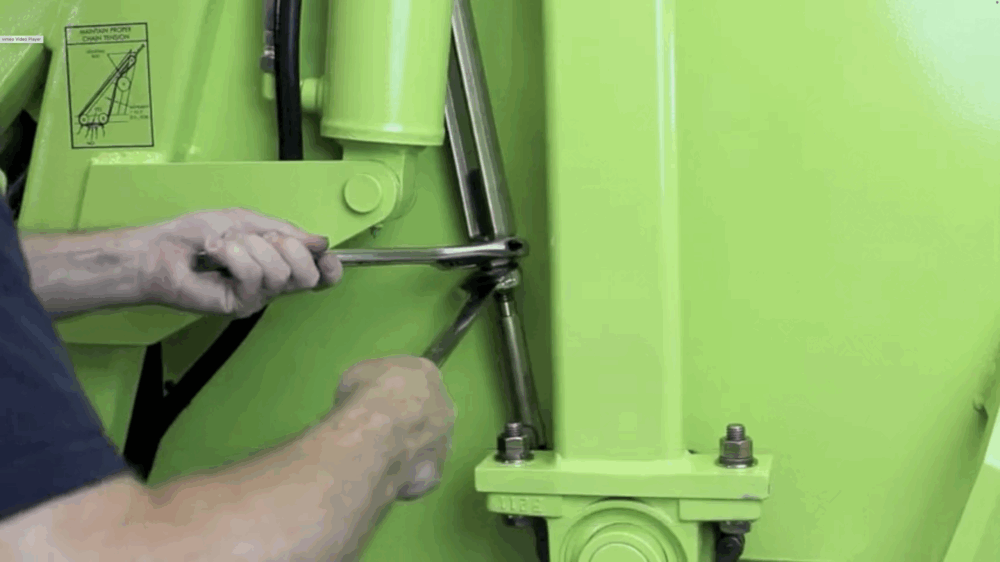

#7 Re-fasten the jam nut.

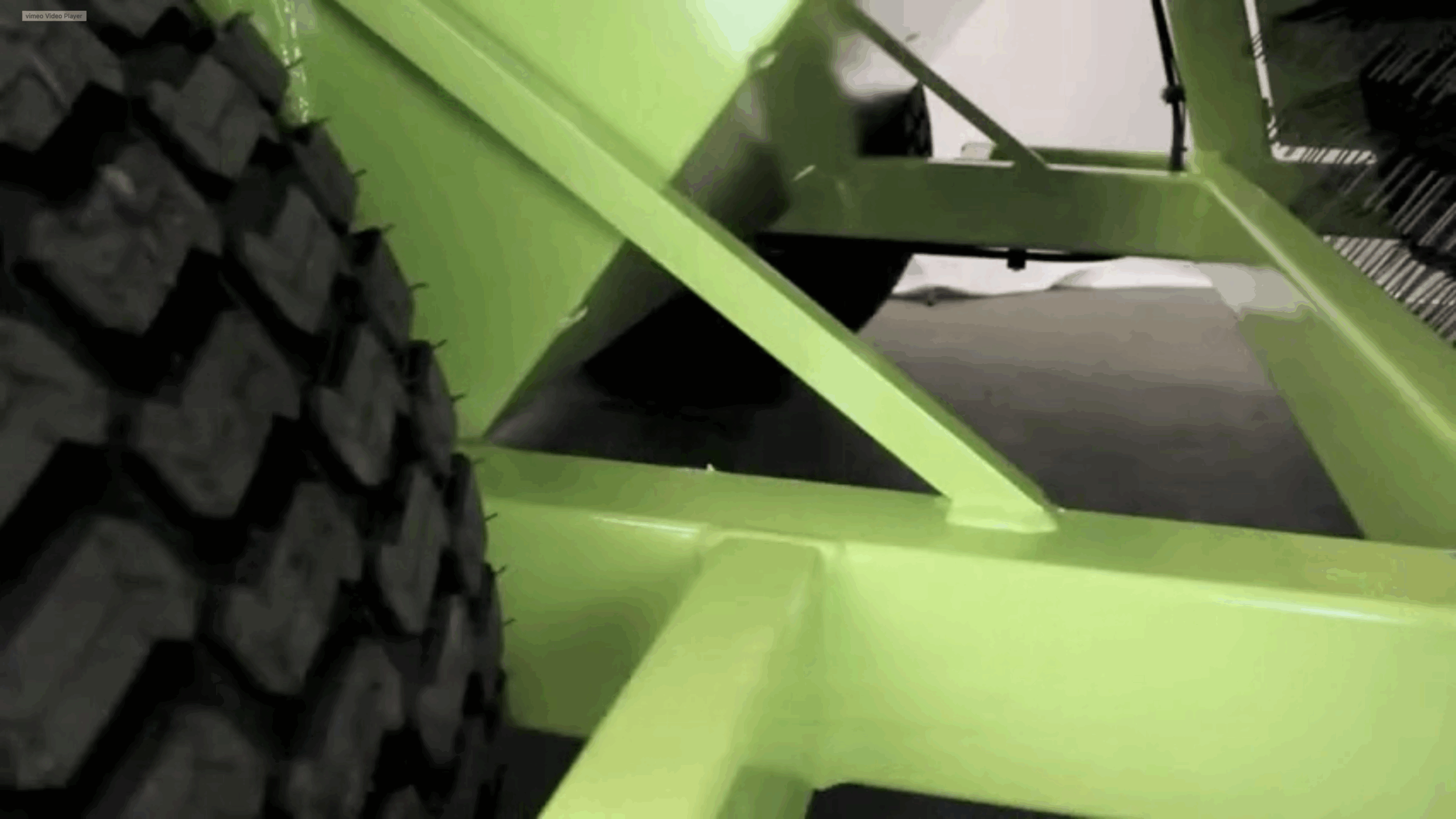

#8 Check alignment on both sides by lowering and raising the bucket.

#8 Check alignment on both sides by lowering and raising the bucket.
