SURF RAKE

ADJUSTING THE DRIVE CHAIN

Play Video about adjusting the drive chain on the surf rake video thumbnail

REQUIRED TOOLS

7/8″ (23mm) Wrench

13/16″ (21mm) Wrench

Two 3/4″ (20mm) Wrenches

FREQUENCY

Check every two months

QUESTIONS?

Contact a Barber team member at:

(800) 355-8318 or hbarber@hbarber.com

ADJUSTING THE DRIVE CHAIN

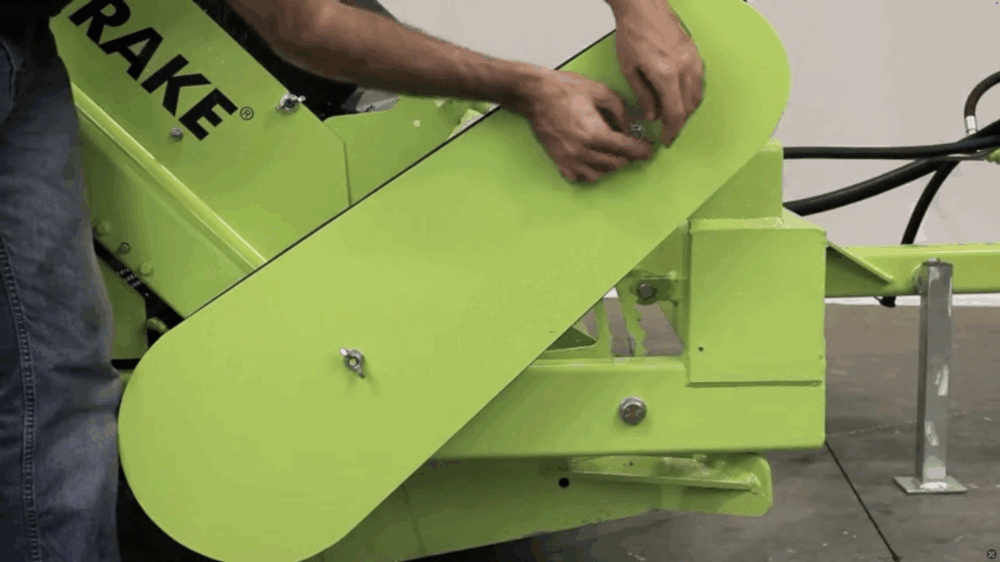

#1 Remove the drive chain cover.

#1 Remove the drive chain cover.

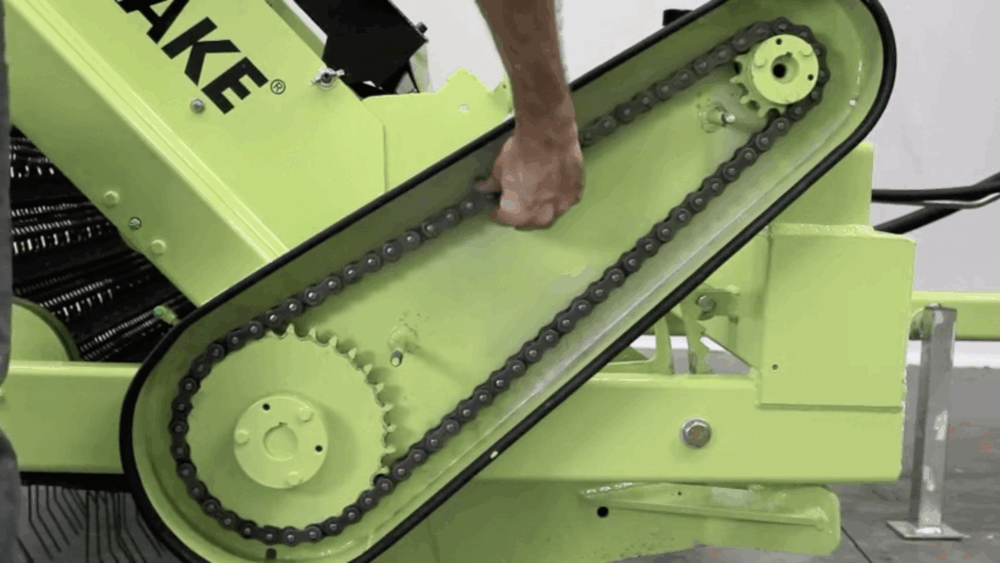

#2 Check drive chain tension.

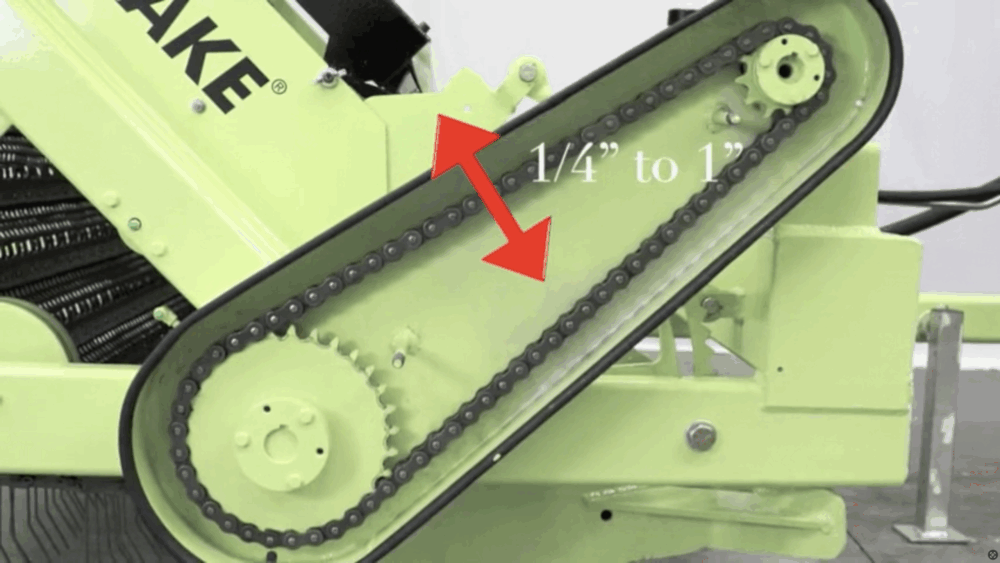

#3 There should be between ¼” and 1” of slack in the chain.

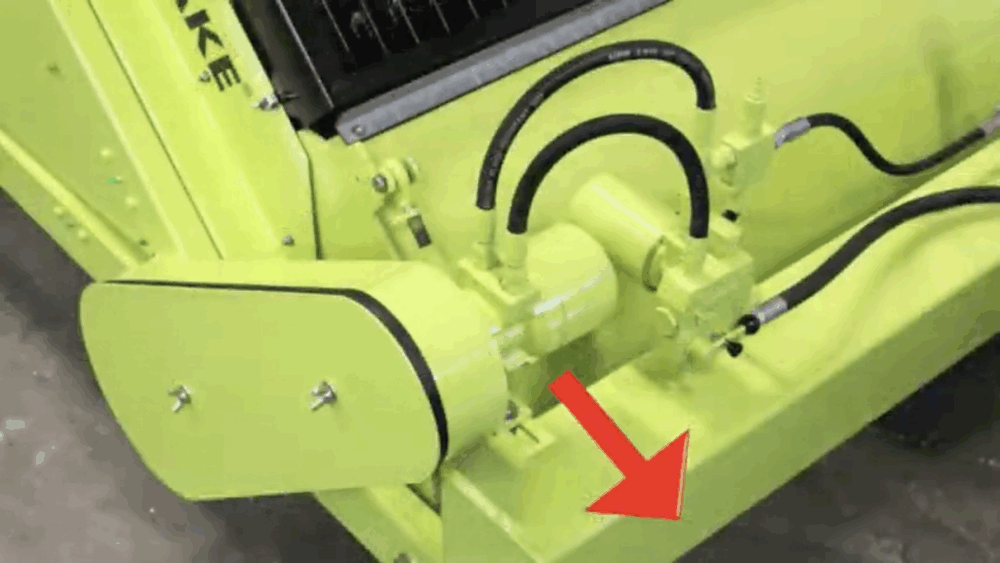

#4 To tighten the chain, move the hydraulic motor forward.

#4 To tighten the chain, move the hydraulic motor forward.

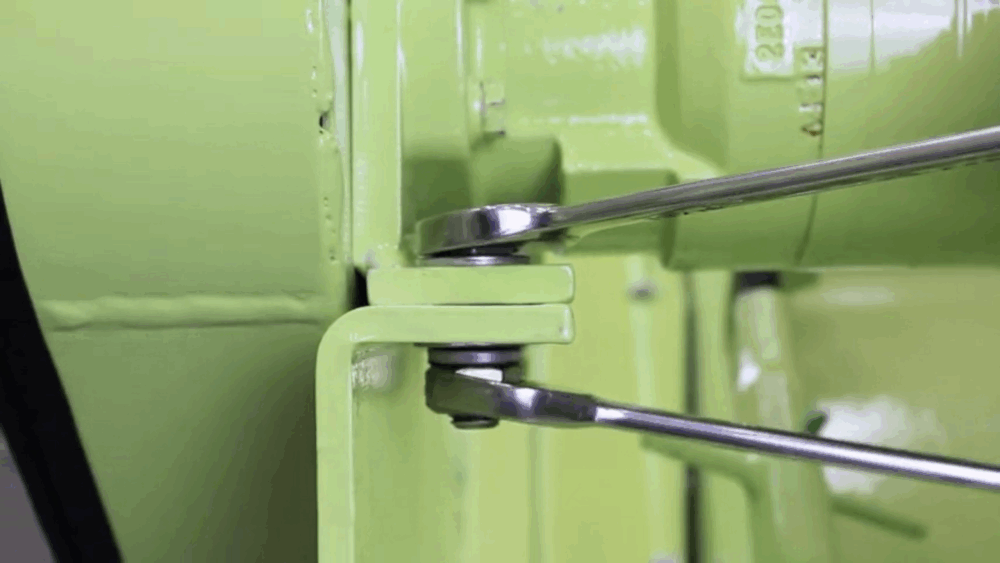

#5 Loosen the motor mounting bolts.

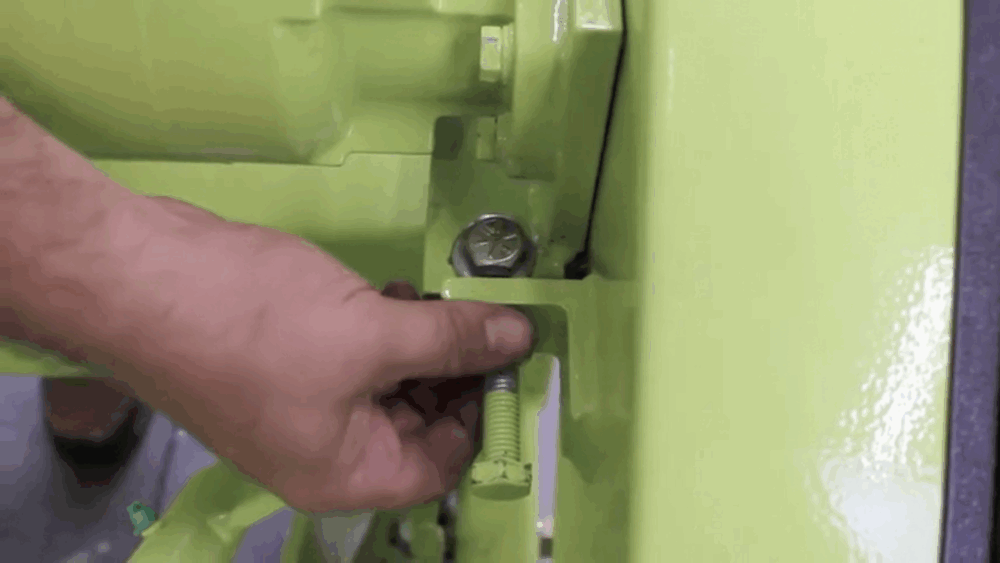

#6 Loosen the adjusting bolt’s jam nut.

#6 Loosen the adjusting bolt’s jam nut.

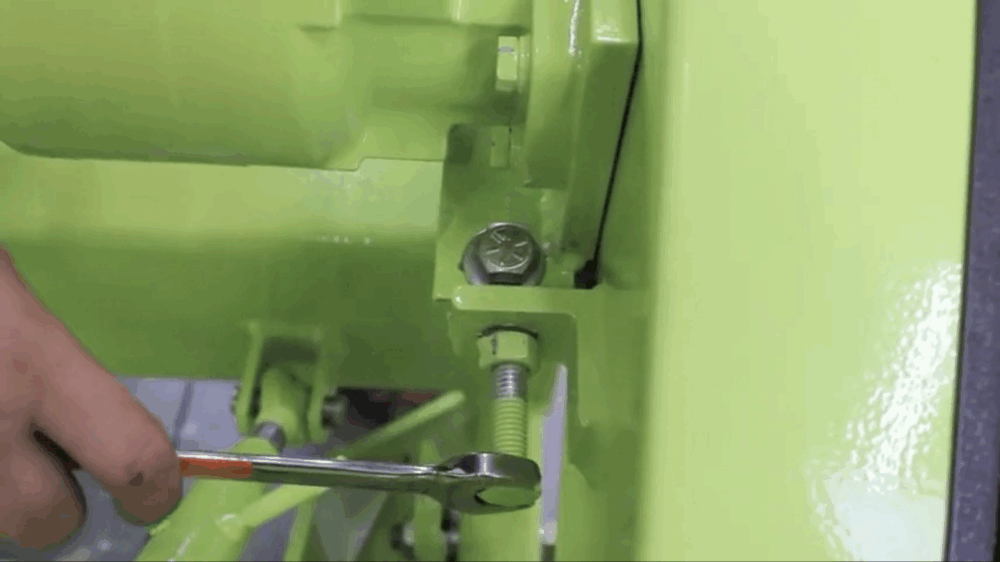

#7 Tighten the adjusting bolt.

#7 Tighten the adjusting bolt.

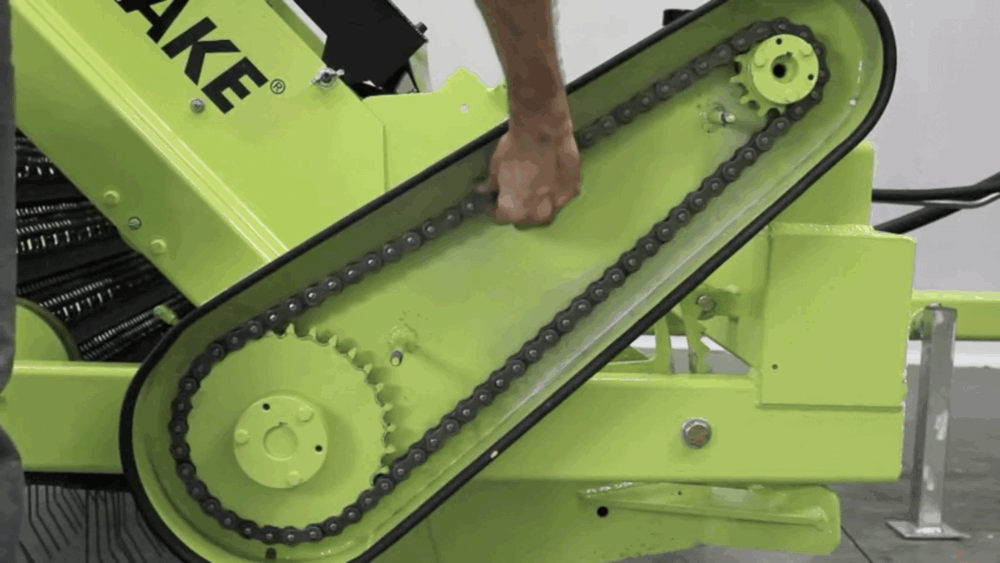

#8 Check drive chain tension.

#8 Check drive chain tension.

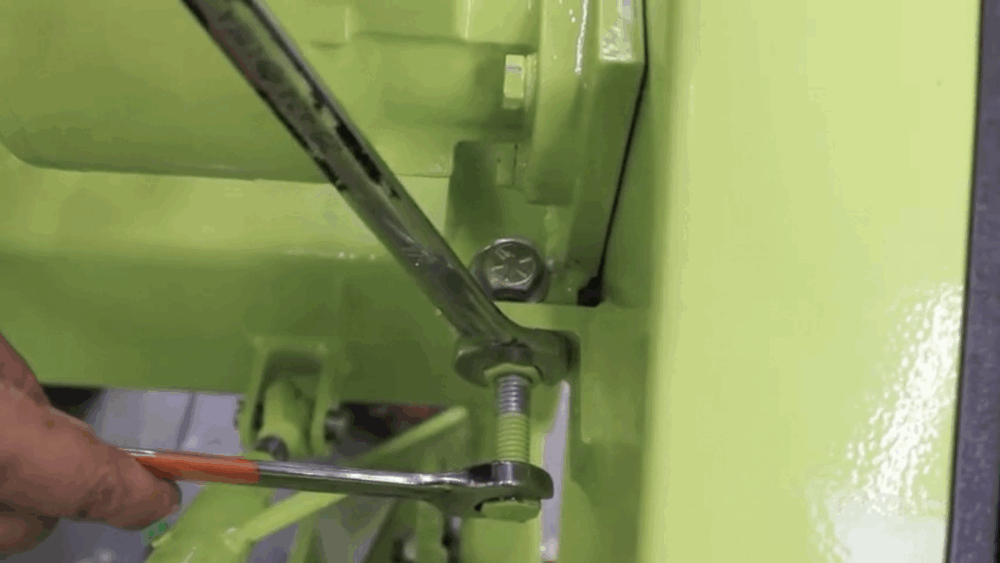

#9 Refasten the jam nut.

#9 Refasten the jam nut.

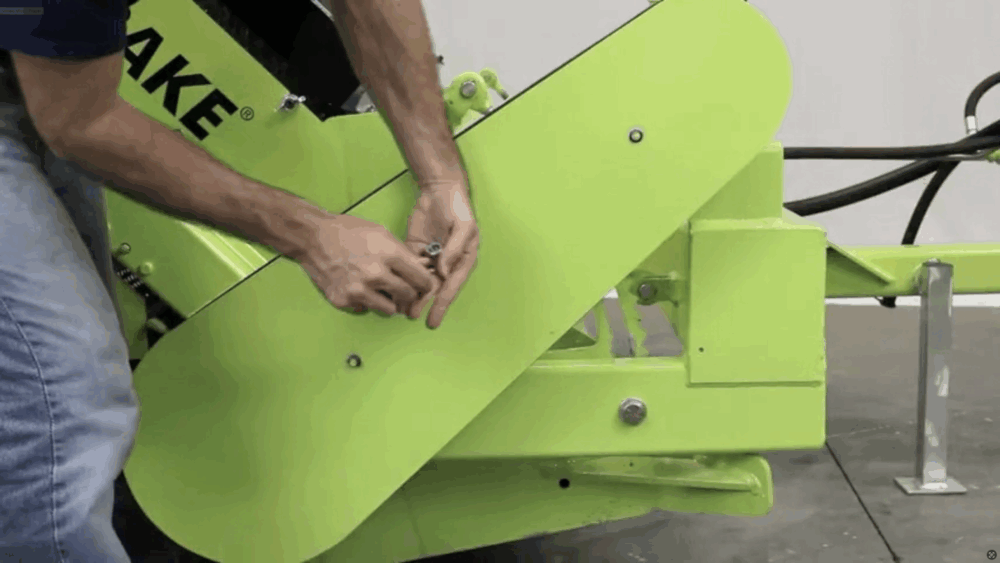

#11 Attach chain cover.

#11 Attach chain cover.

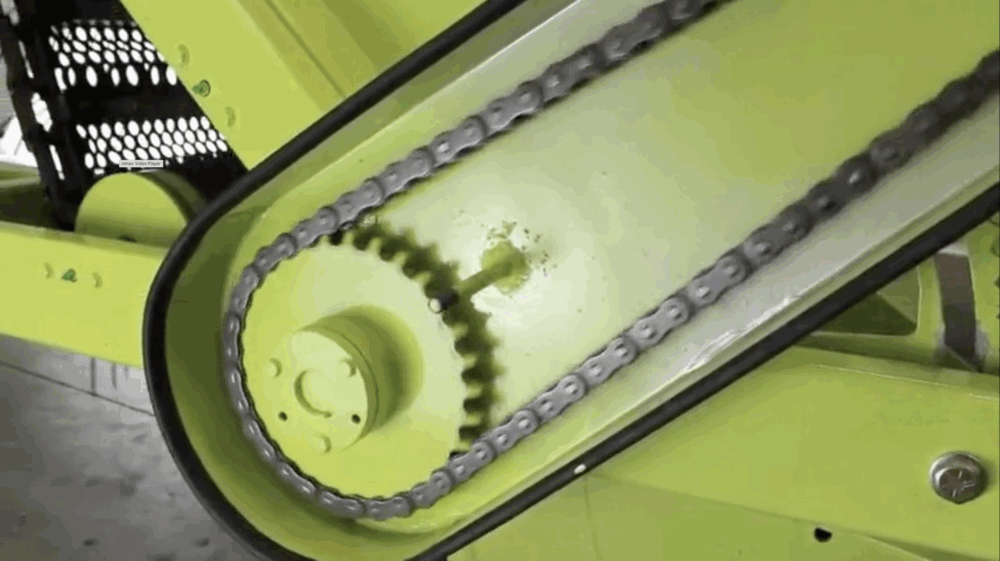

#12 Check tension every 2 months or 200 hours.

#12 Check tension every 2 months or 200 hours.
