SURF RAKE service

ADJUSTING THE SURF RAKE'S 8" & 3.5" IDLER ROLLER BEARINGS

One powerful advantage of the SURF RAKE’s longevity is its adjustable bearings. Instead of replacing rollers after the bearings wear, which can be a costly and time-consuming task, Barber uses roller bearings that can be adjusted as they age by simply adding inexpensive shims. This allows Barber’s rollers to last far longer–saving you time and money over time.
Play Video about adjusting the idler roller

REQUIRED TOOLS

Snapring Pliers

New Shims

FREQUENCY

Only as needed if substantial looseness is noticed in the idler roller’s bearing.

QUESTIONS?

Contact a Barber team member at:

(800) 355-8318   or

hbarber@hbarber.com



ADJUSTING THE SURF RAKE'S 8" & 3.5" IDLER ROLLER BEARINGS

#1 Place roller in vice.

#1 Place roller in vice.

#2 Remove outer snap-ring and cover.

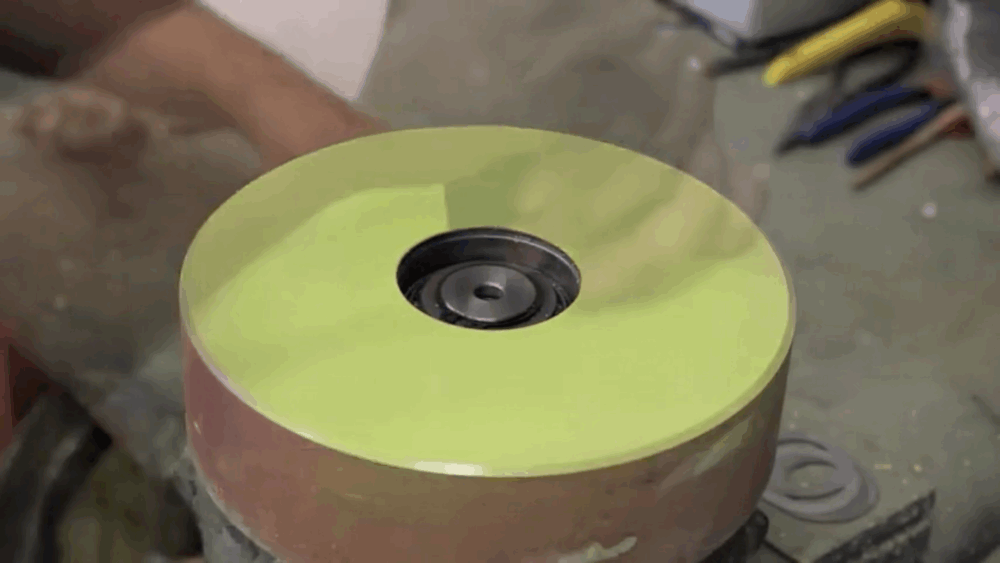

#3 Clear grease and contaminants.

#3 Clear grease and contaminants.

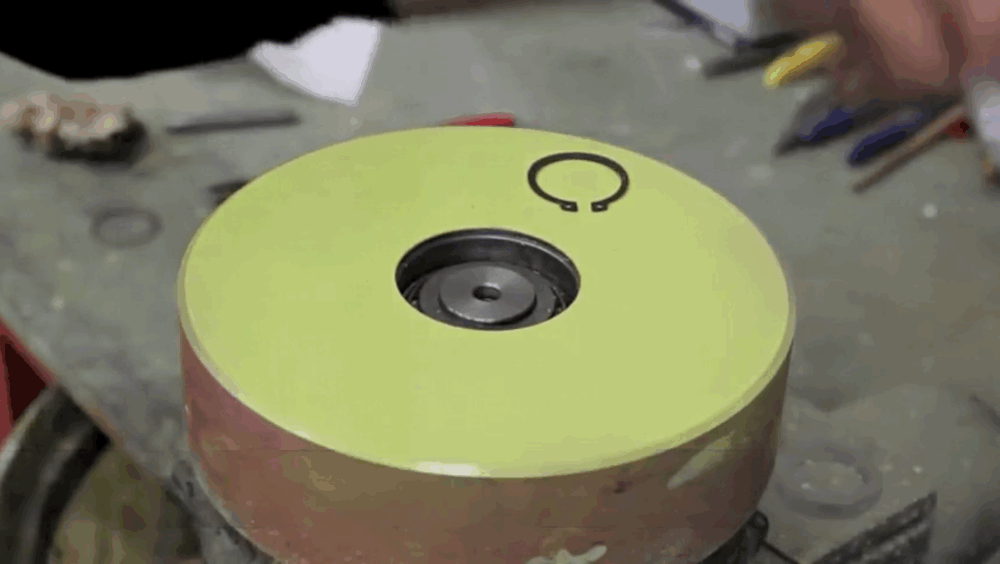

#4 Remove inner snap-ring.

#4 Remove inner snap-ring.

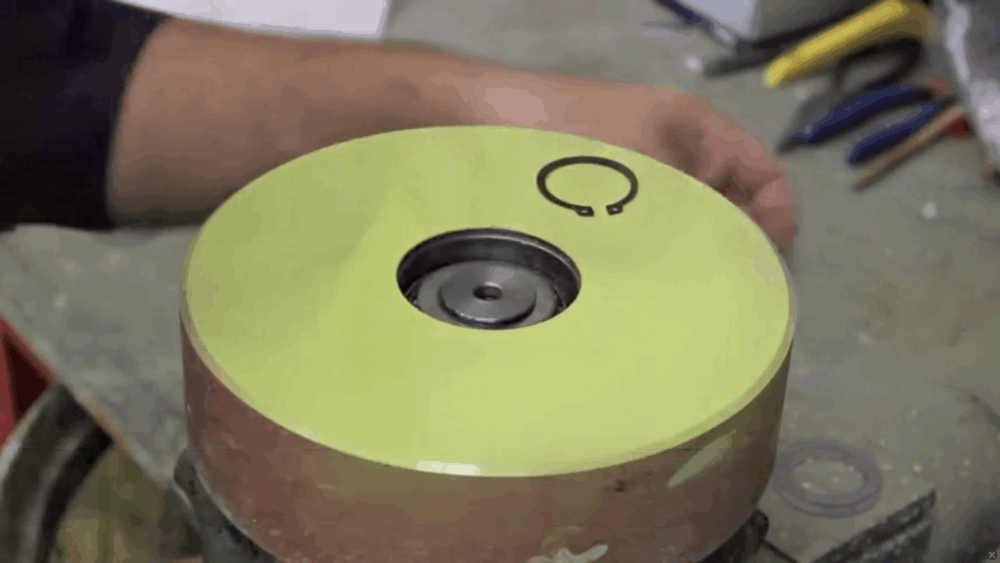

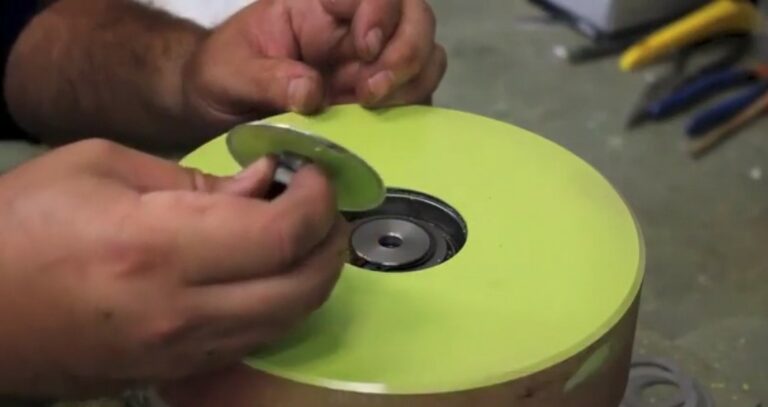

#5 Install additional shims.

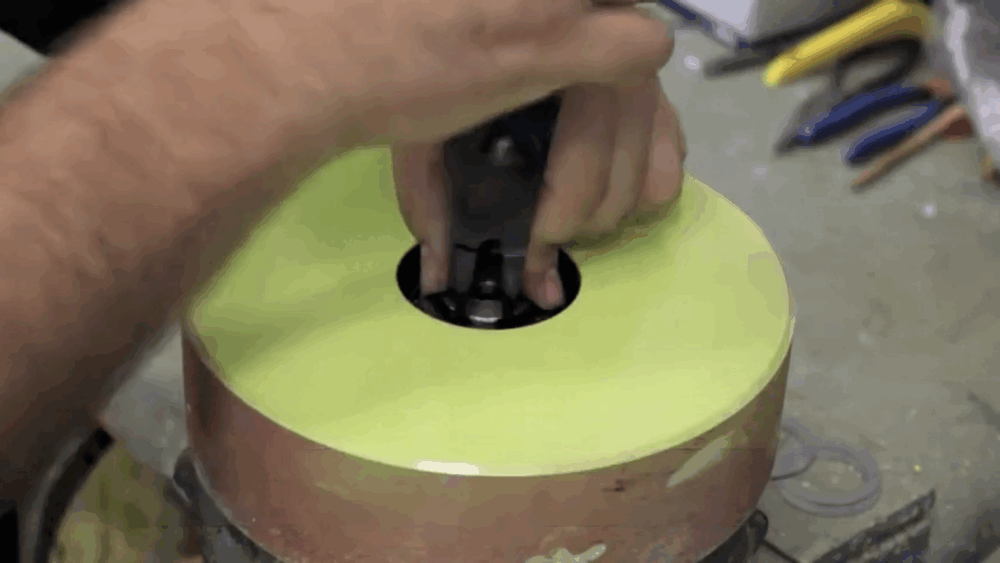

#6 Reinstall inner snap-ring.

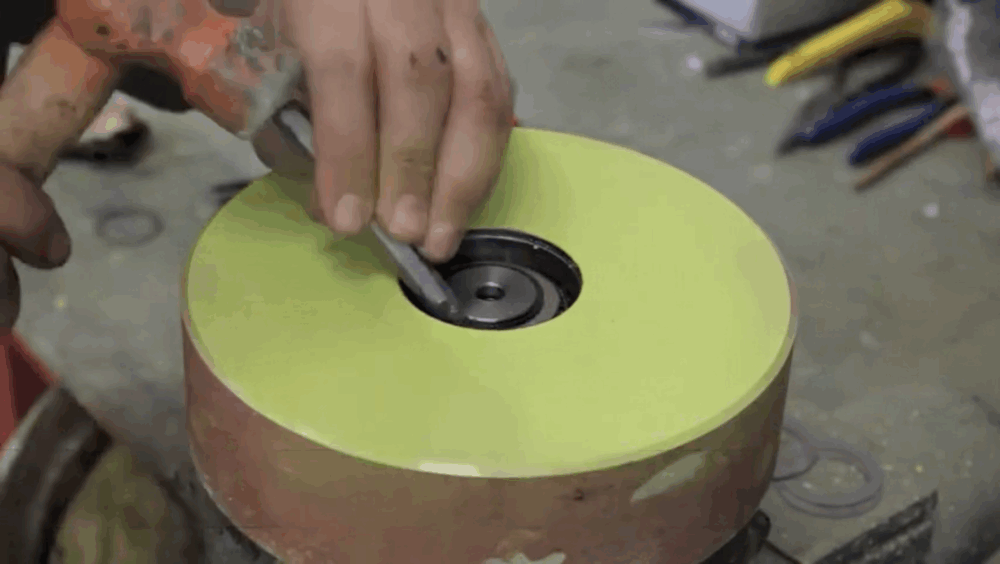

#7 Ensure the snap-ring is installed firmly within the groove of the shaft.

#7 Ensure the snap-ring is installed firmly within the groove of the shaft.

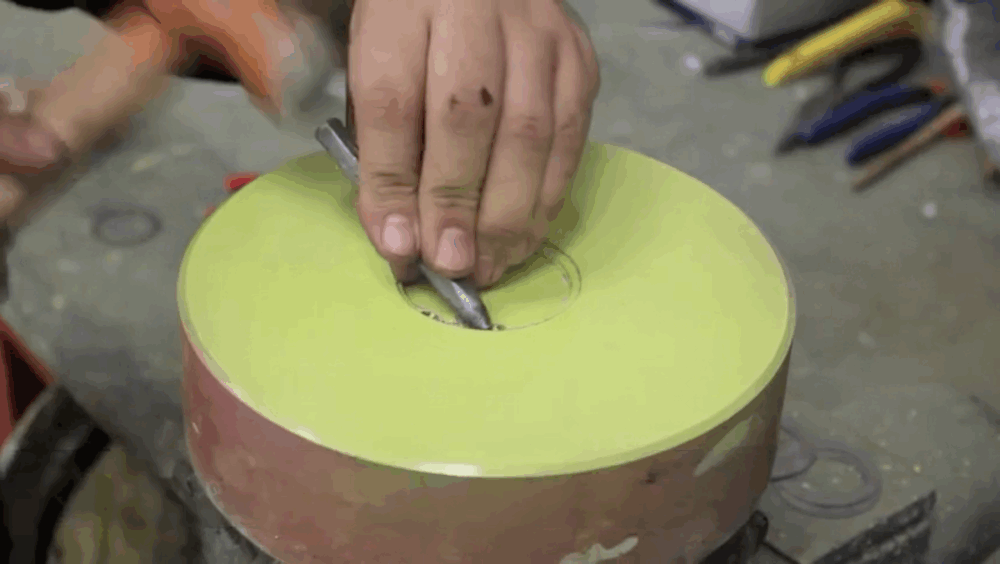

#8 Replace the cover and snap-ring.

#8 Replace the cover and snap-ring.

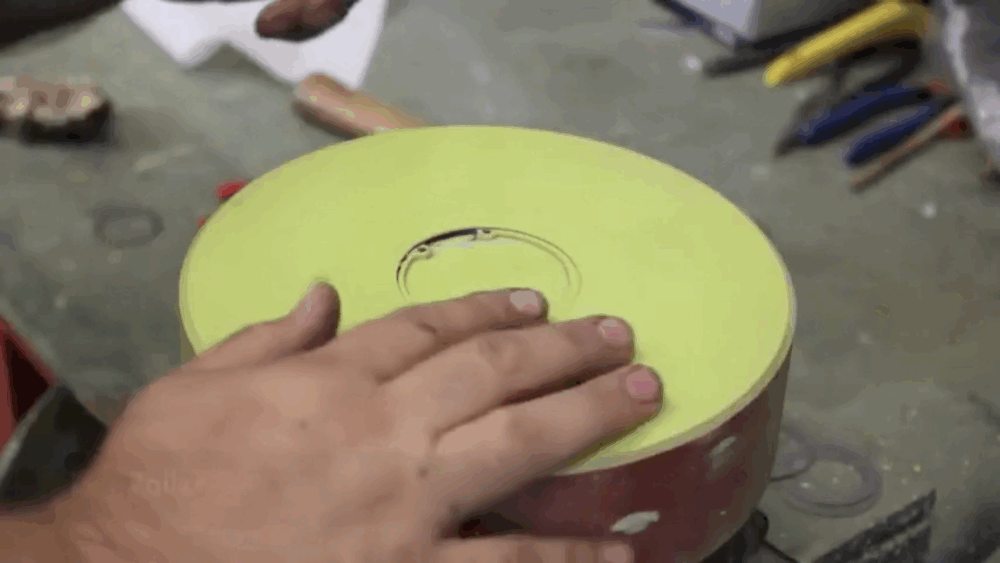

#9 Test the roller.

#9 Test the roller.

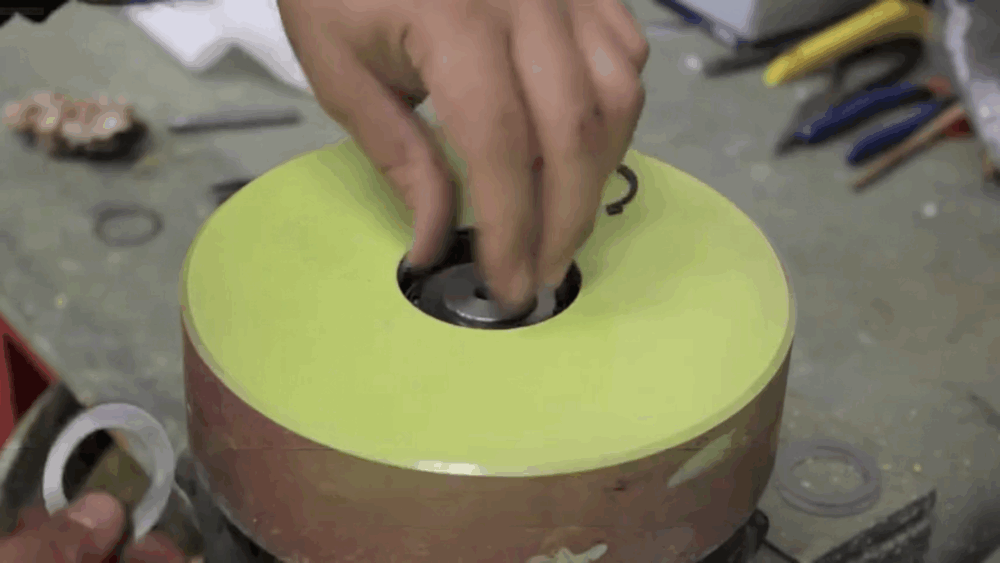

#10 Add more shims, if necessary.

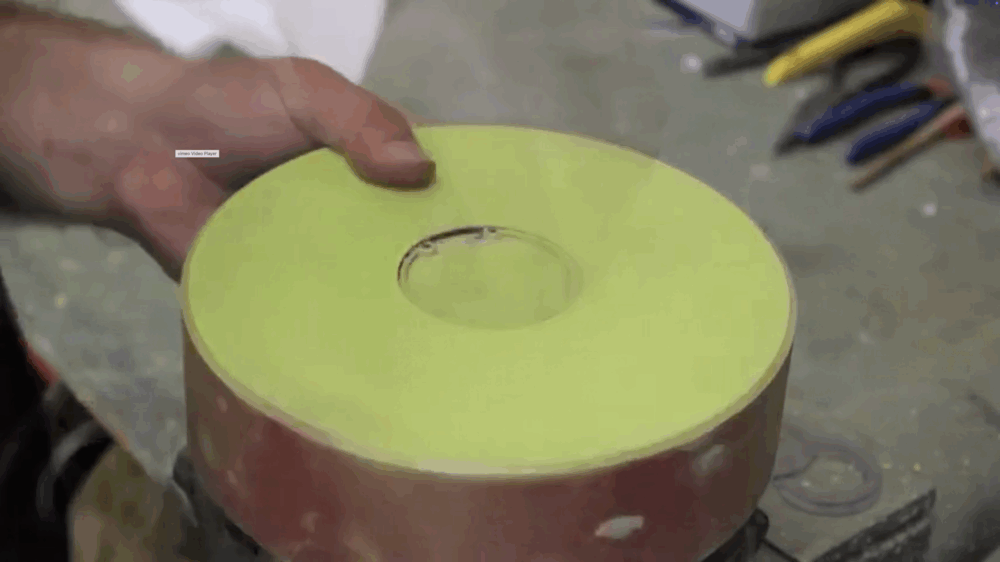

#11 Reinstall the roller on the Surf Rake.
