SAND MAN 850 MAINTENANCE PROCEDURES

CHANGING THE SHIFTING SCREEN.

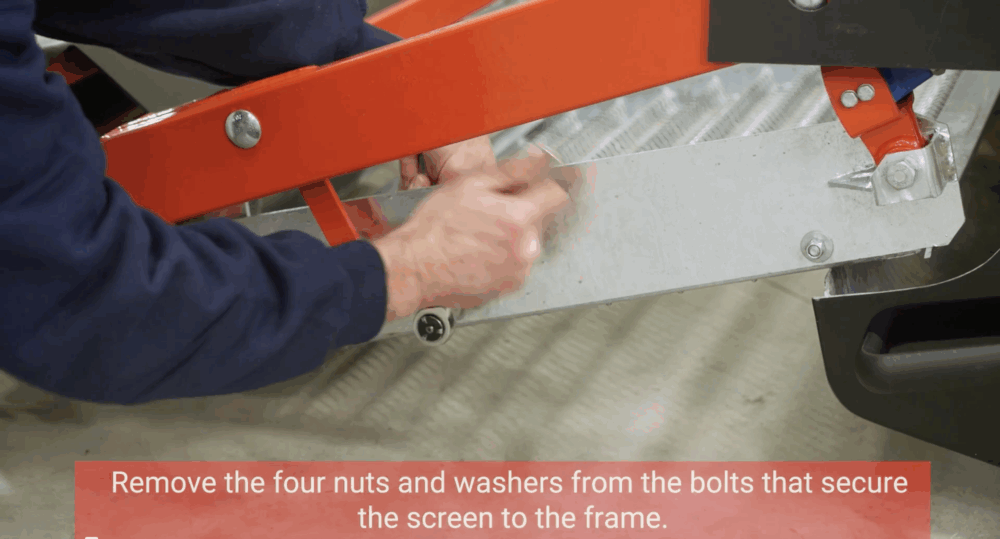

#1 Remove the four nuts and washers from the bolts that secure the screen to the frame.

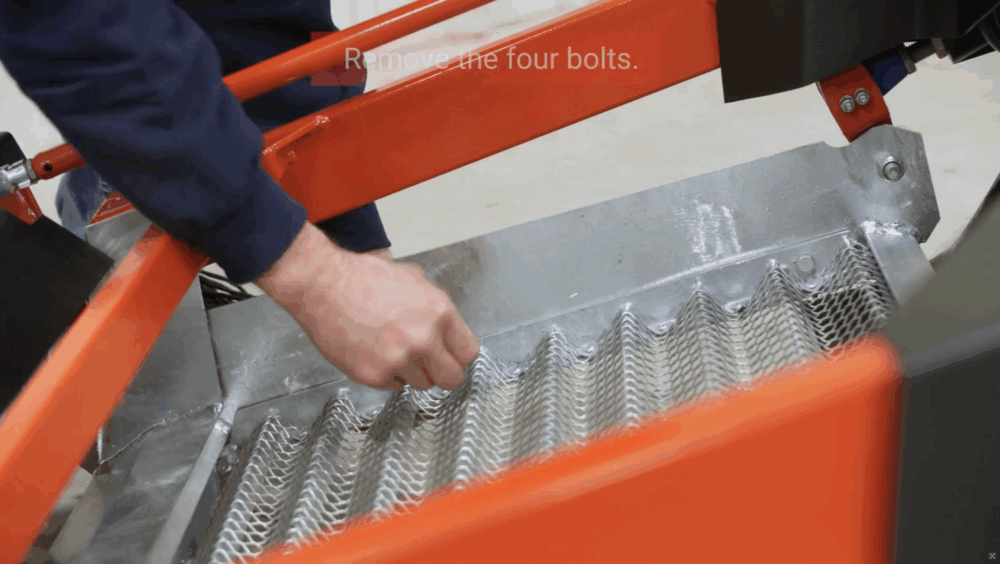

#2 Remove the four bolts.

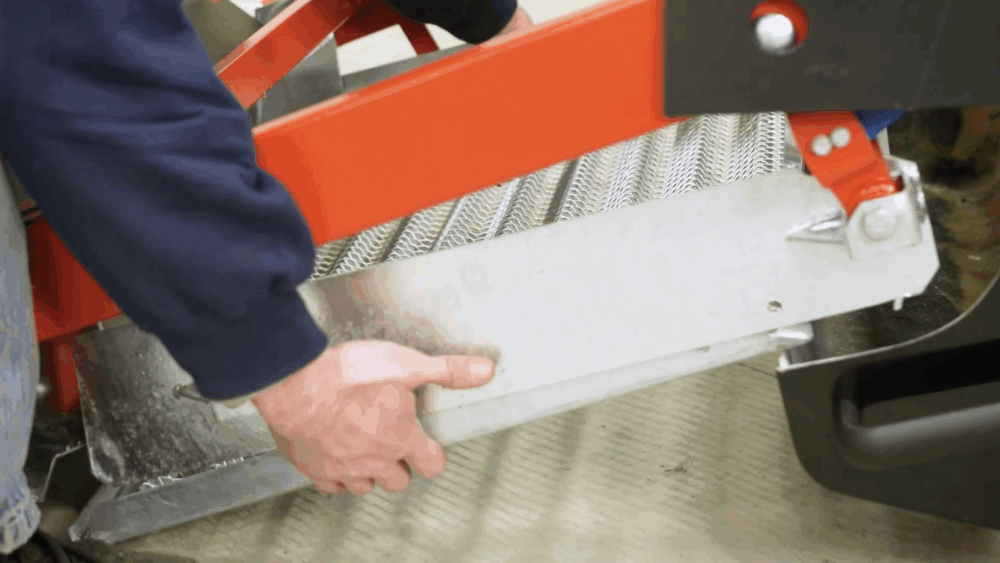

#3 Remove the old screen.

#4 Position the new screen under the Sand Man.

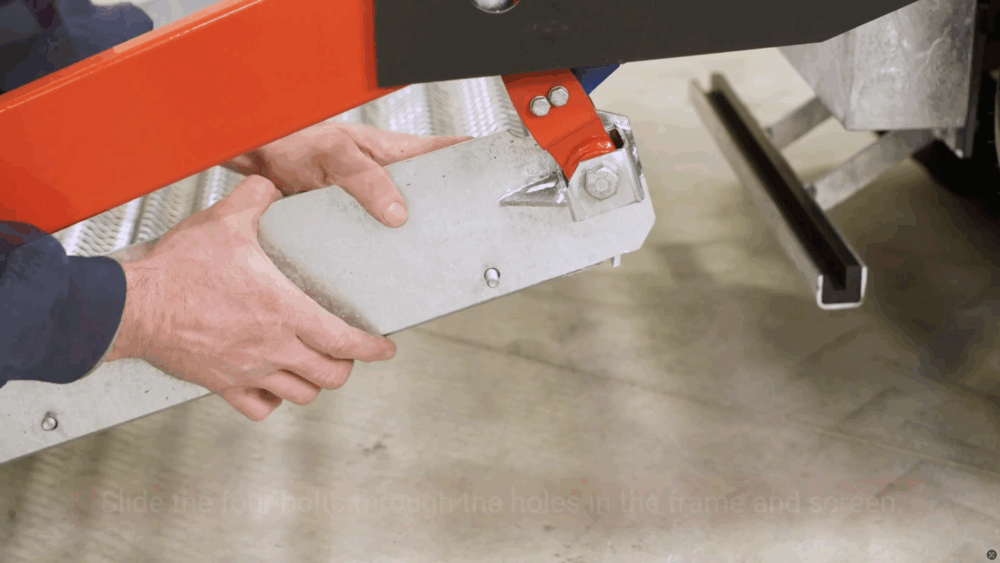

#5 Slide the four bolts through the holes in the frame screen.

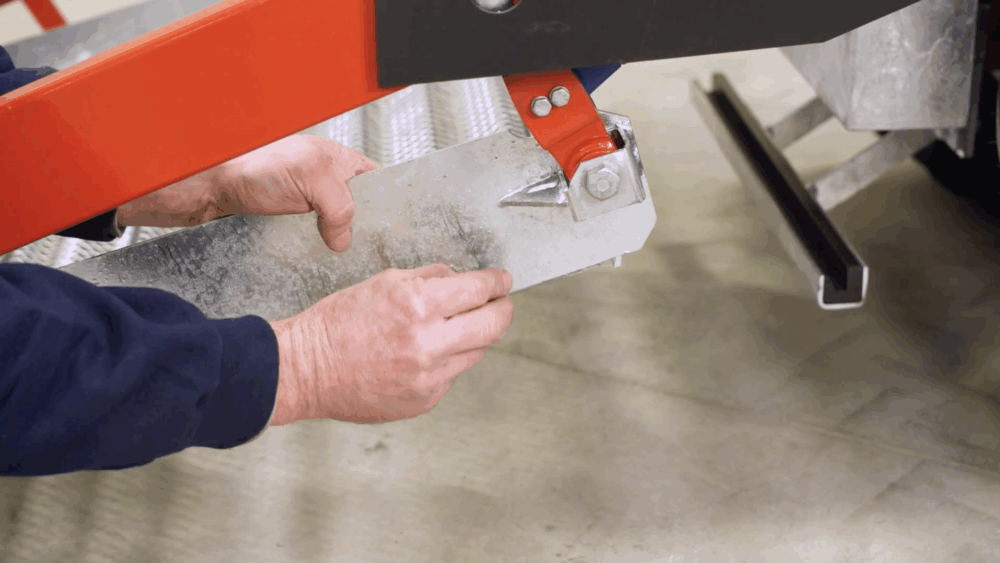

#6 Place the washer on the bolts and tighten the nuts over them.

CHECKING THE TRANSMISSION FLUID

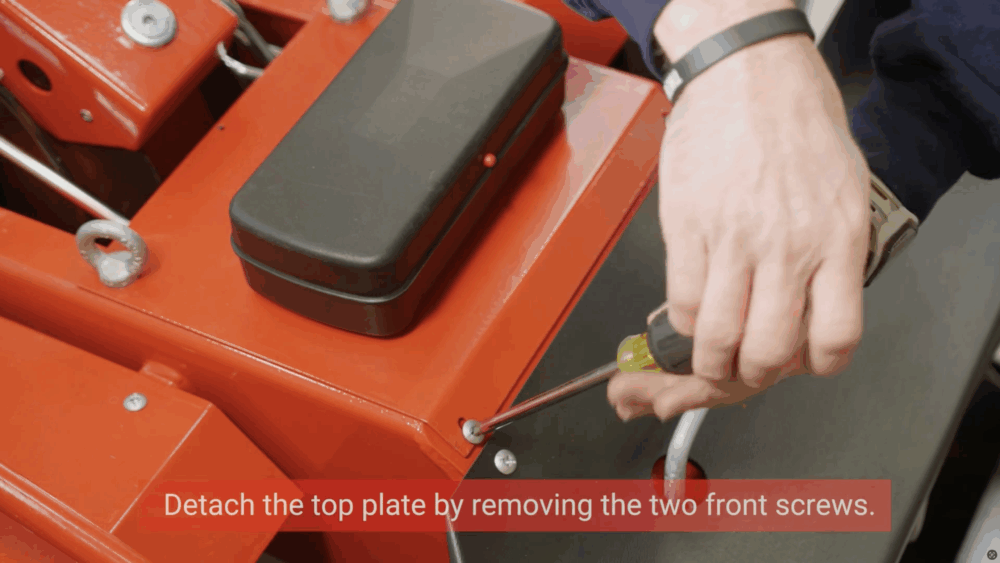

#1 Detach the top plate by removing the two front screws.

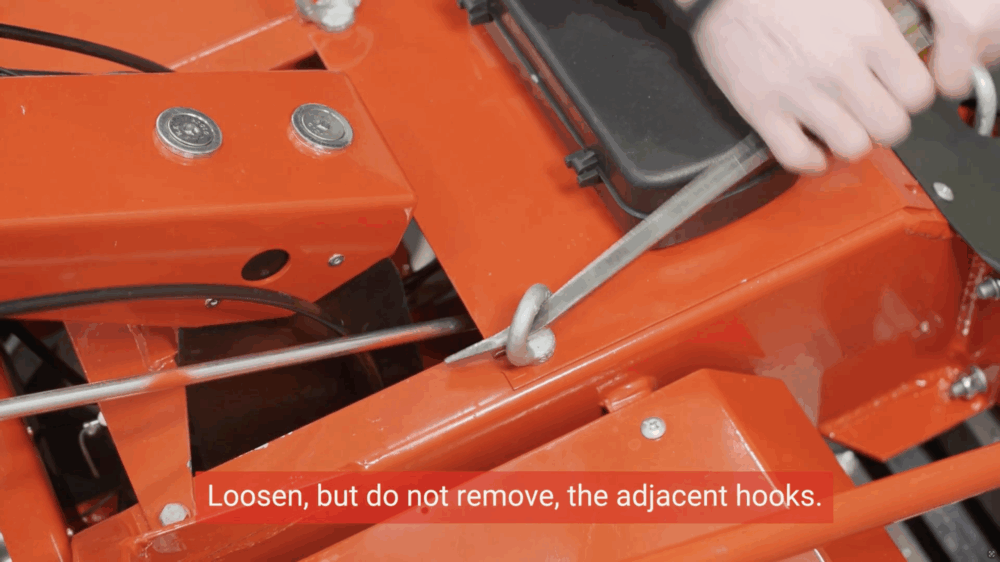

#2 Loosen but do not remove the adjacent hooks.

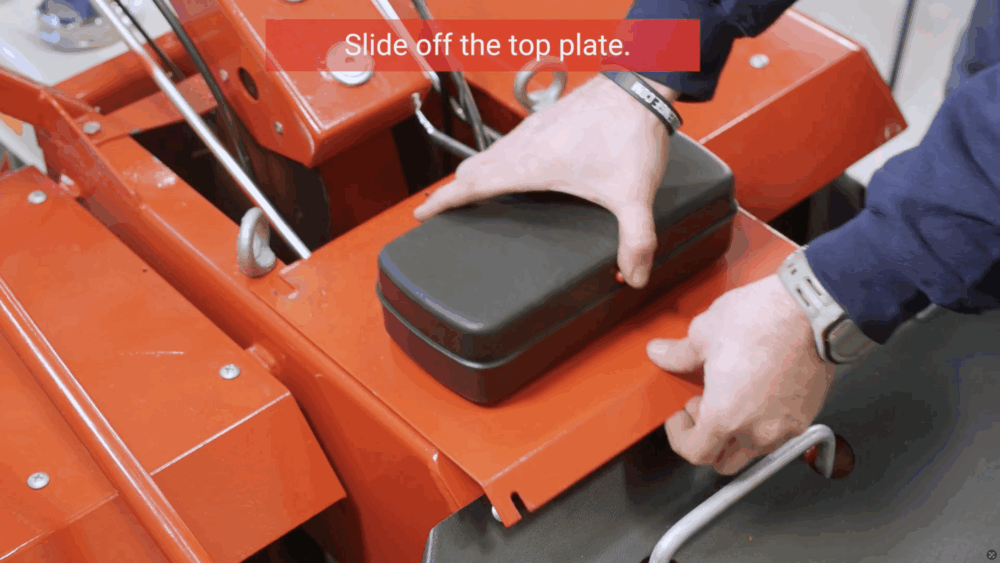

#3 Slide off the top plate.

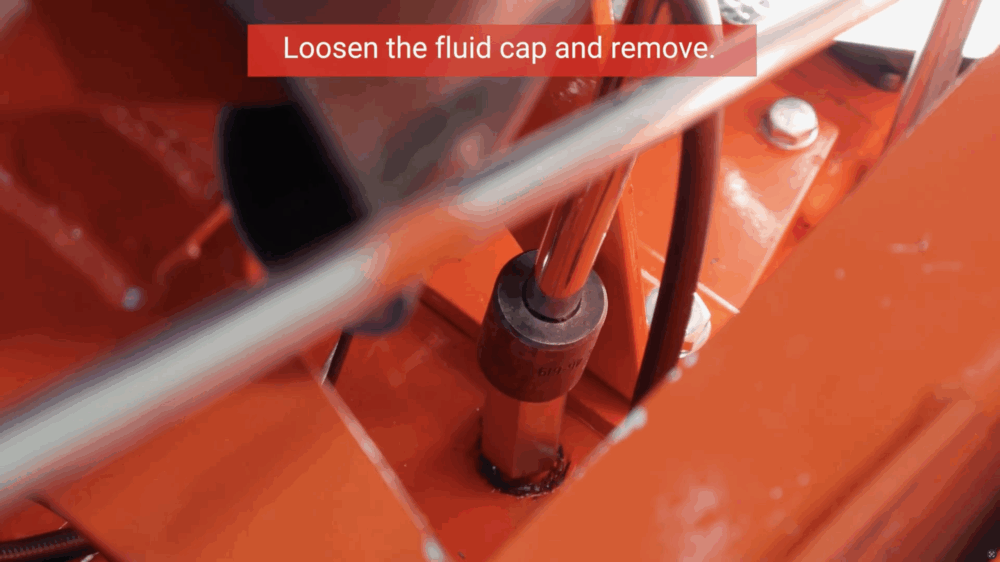

#4 Loosen the fluid cap and remove.

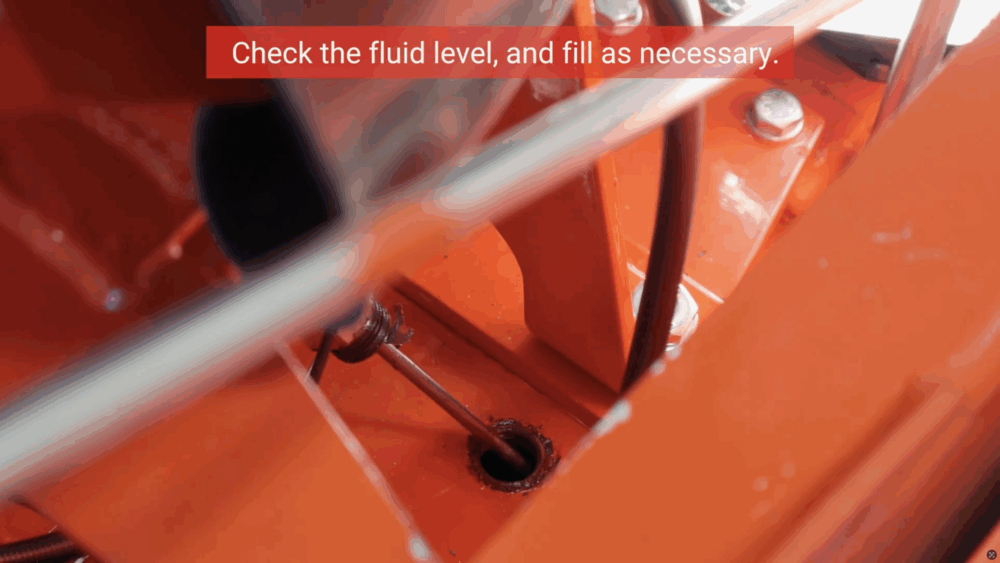

#5 Check the fluid level and fill as necessary.

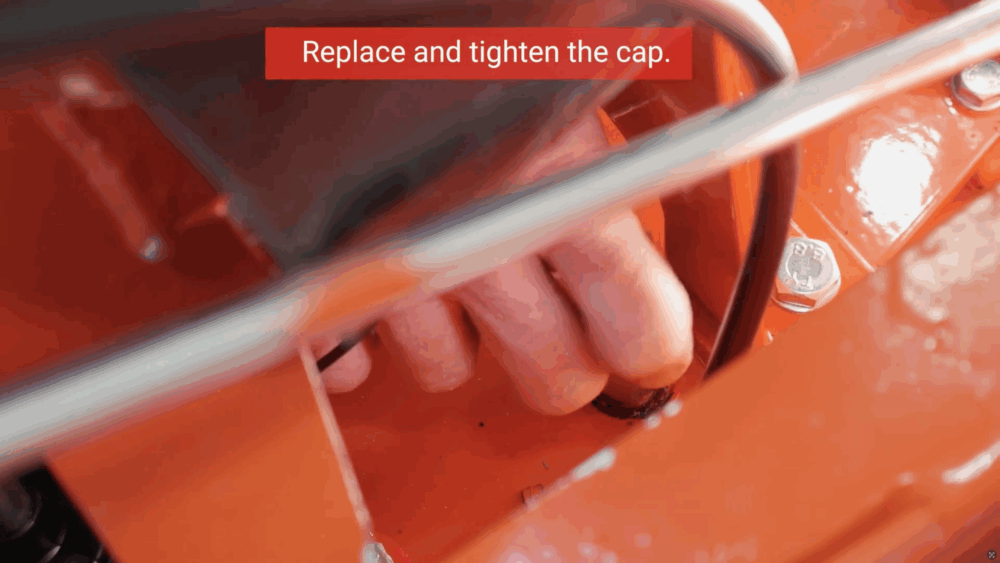

#6 Replace and tighten cap.

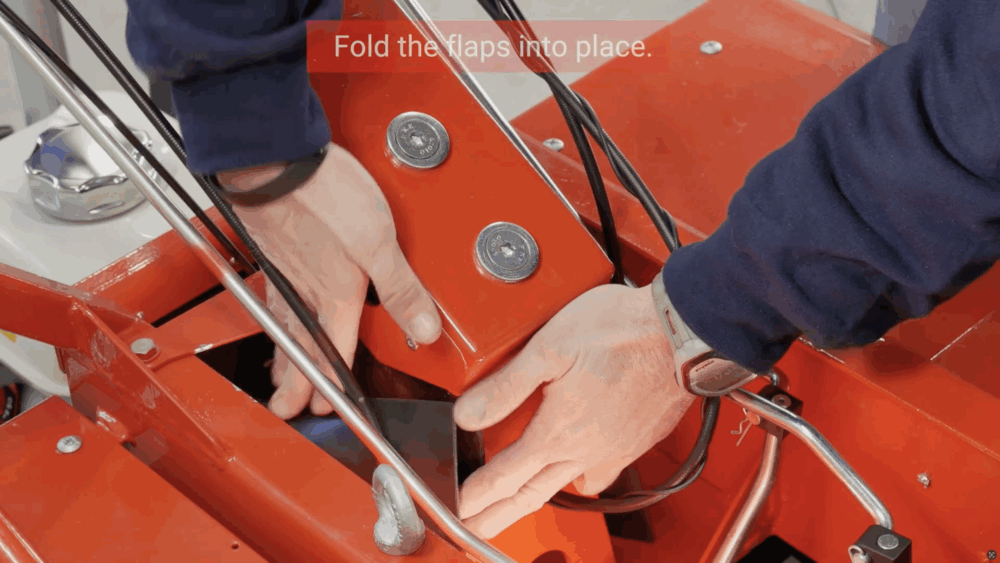

#7 Fold the flaps into place.

Changing the Transmission Fluid

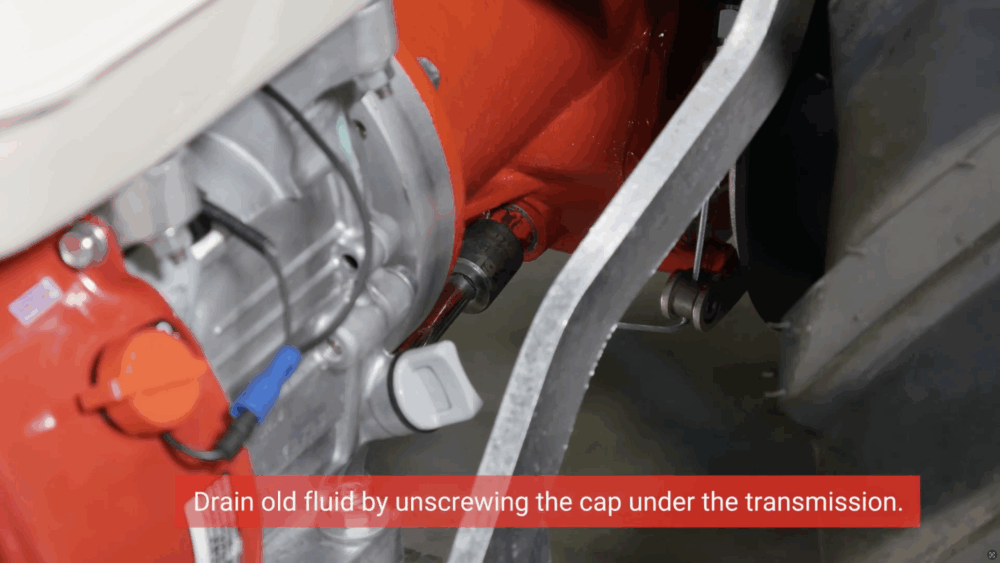

#1 Drain old fluid by unscrewing the cap under transmission.

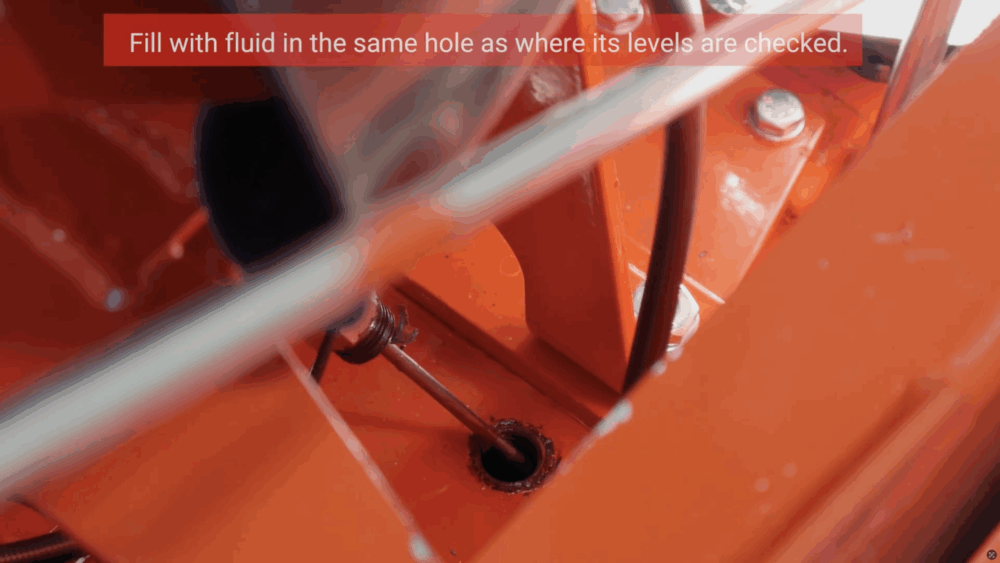

#2 Fill with fluid in the same hole as where its levels are checked.

REPLACING THE BELT

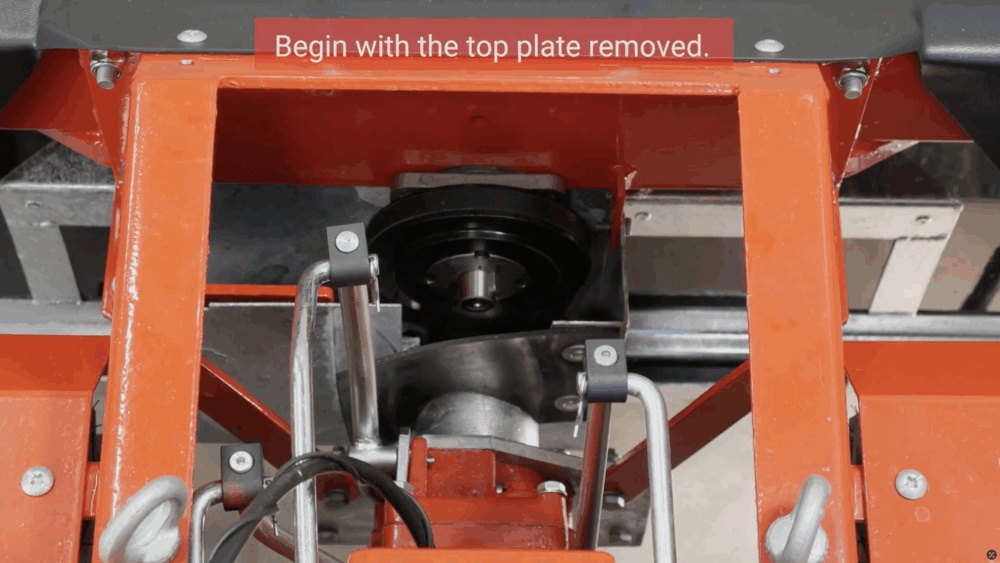

#1 Begin with the top plate removed.

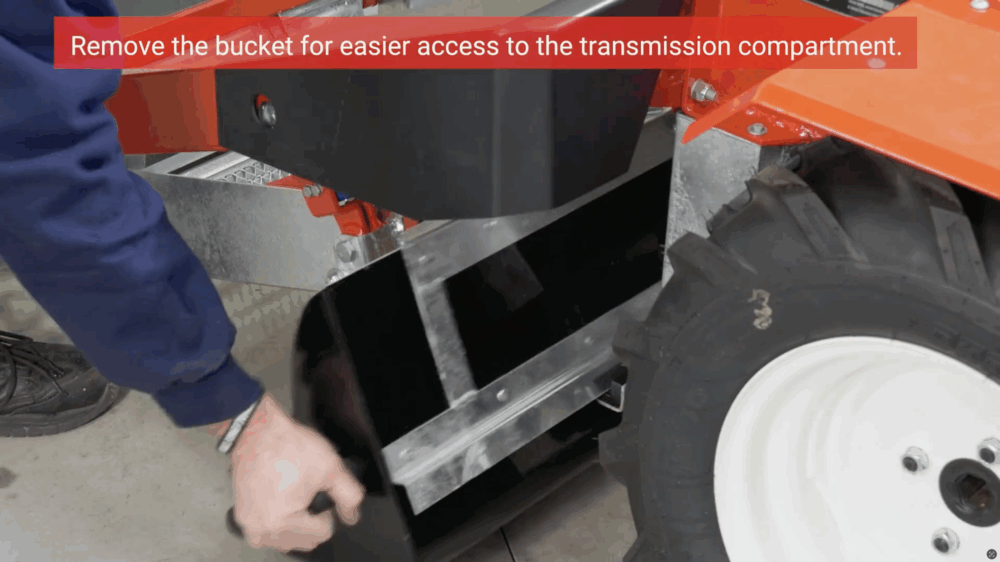

#2 Remove the bucket for easier access to the transmission compartment.

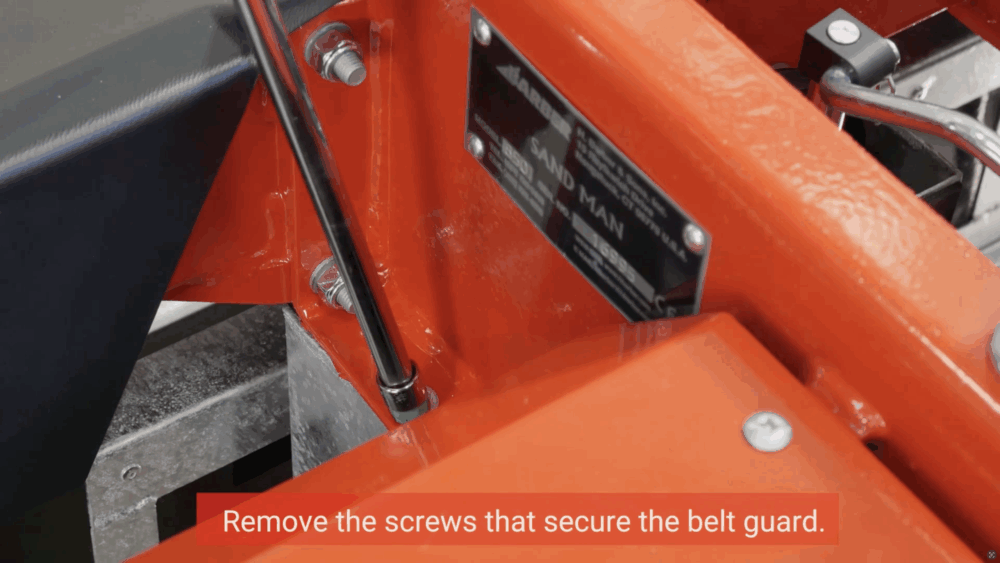

#3 Remove the screws that secure the belt guard.

#4 Remove the belt guard.

#5 Loosen the belt tensioner's bolt.

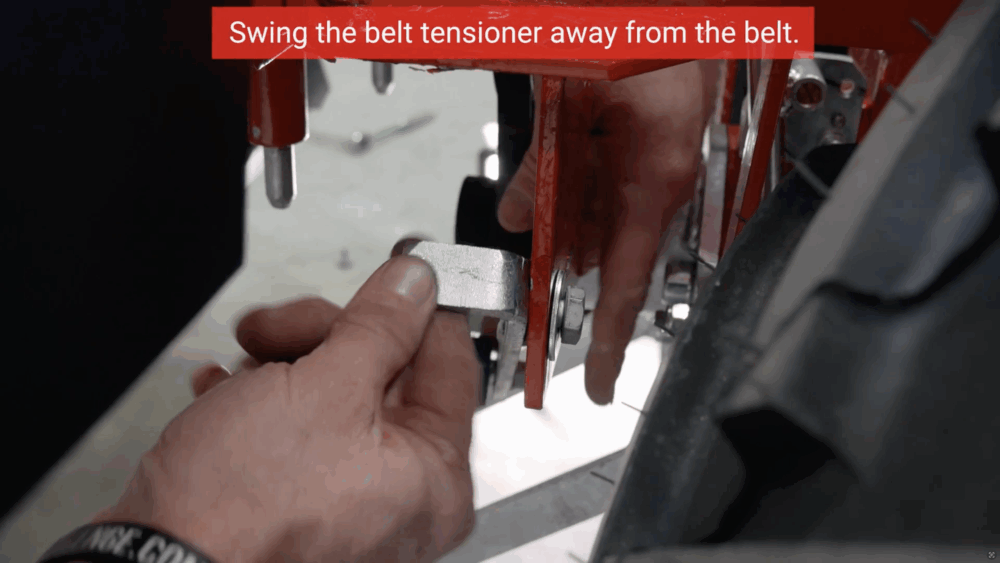

#6 Swing the belt tensioner away from the belt.

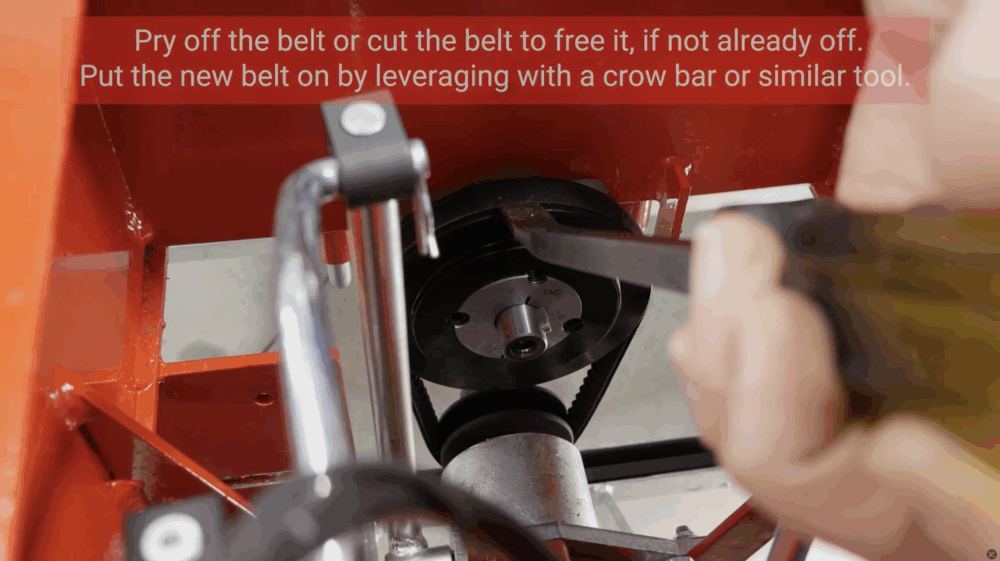

#7 Pry off the belt or cut the belt to free it, if not already off. Put the new belt on by leveraging with a crowbar or similar tool.

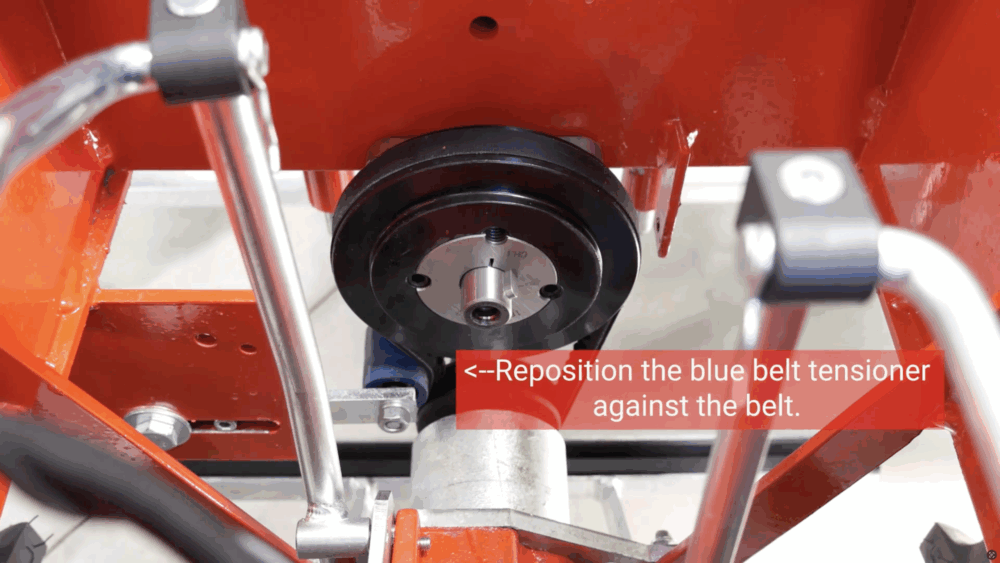

#8 Reposition the blue belt tensioner against the belt.

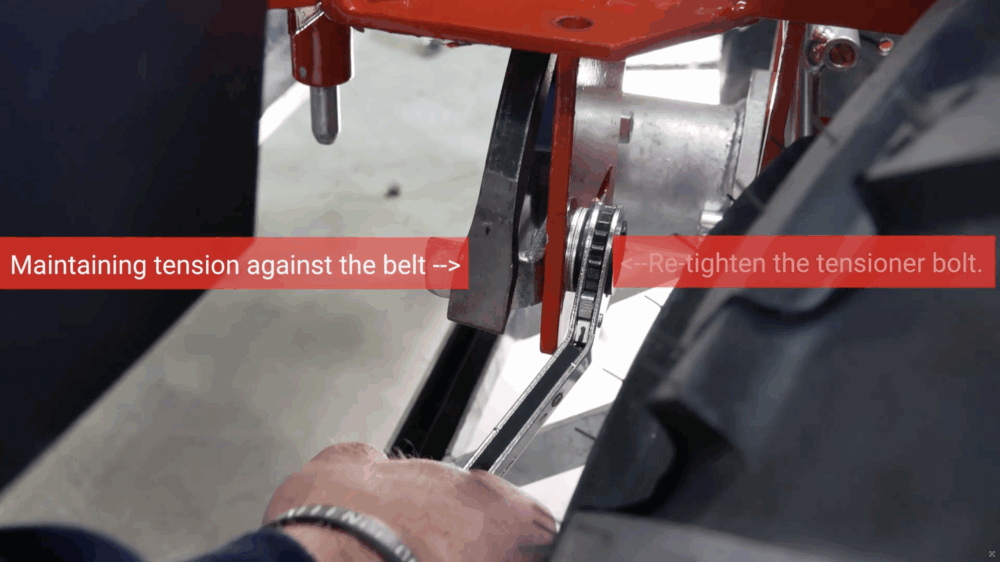

#9 Maintaining tension against the belt.

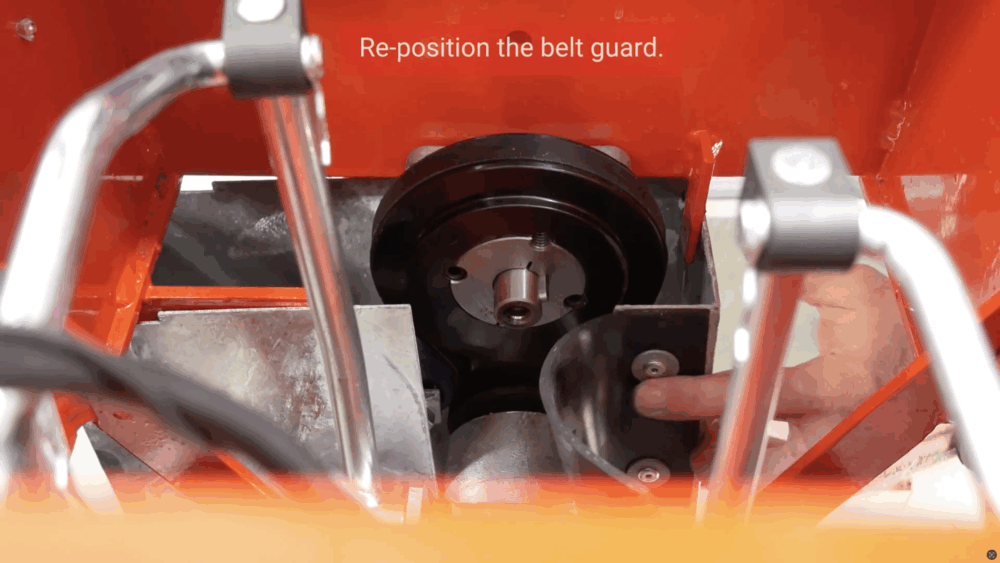

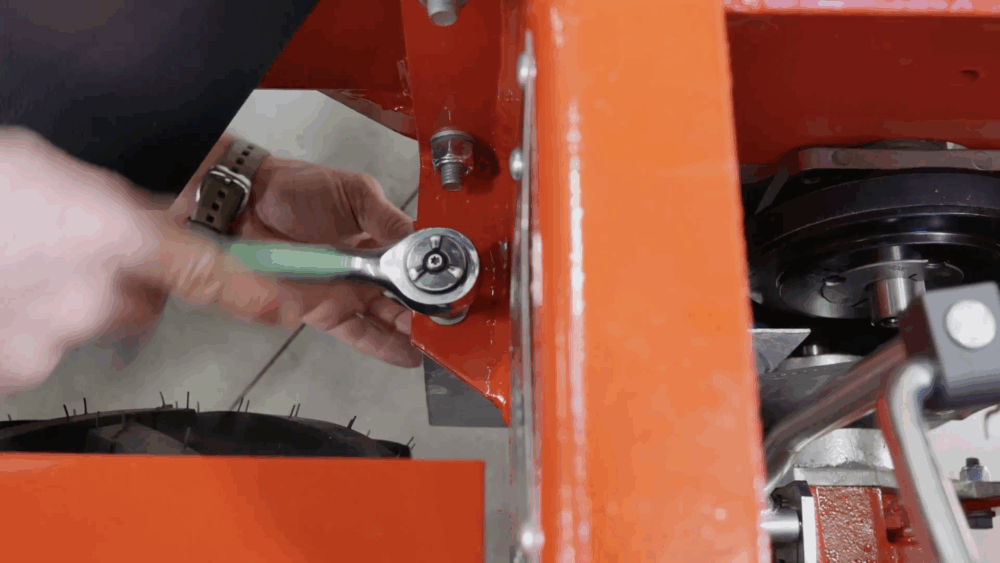

#10 Reposition the belt guard.

#11 Retighten the tensioner belt.

#12 Put the bucket back in place.

#13 Secure the top plate.
