sand man 850 installation instructions

Play Video about installing the sandman 850 navigation thumbnail

REQUIRED TOOLS

Included Allen Wrench

Adjustable Wrench

FREQUENCY

Upon receipt of the machine

INSTALLING THE HANDLEBARS

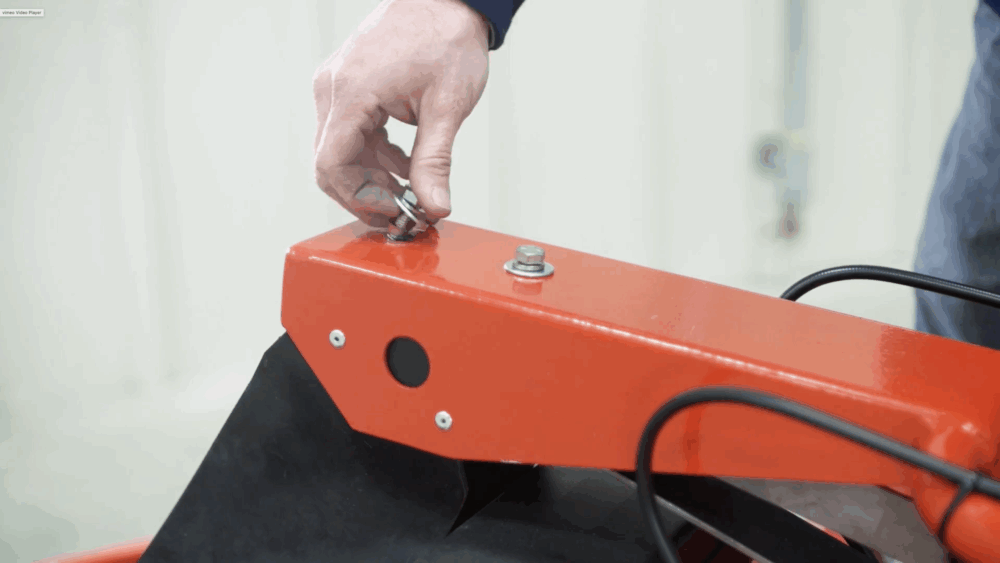

#1 Remove the two screws at the top and center of the machine.

#1 Remove the two screws at the top and center of the machine.

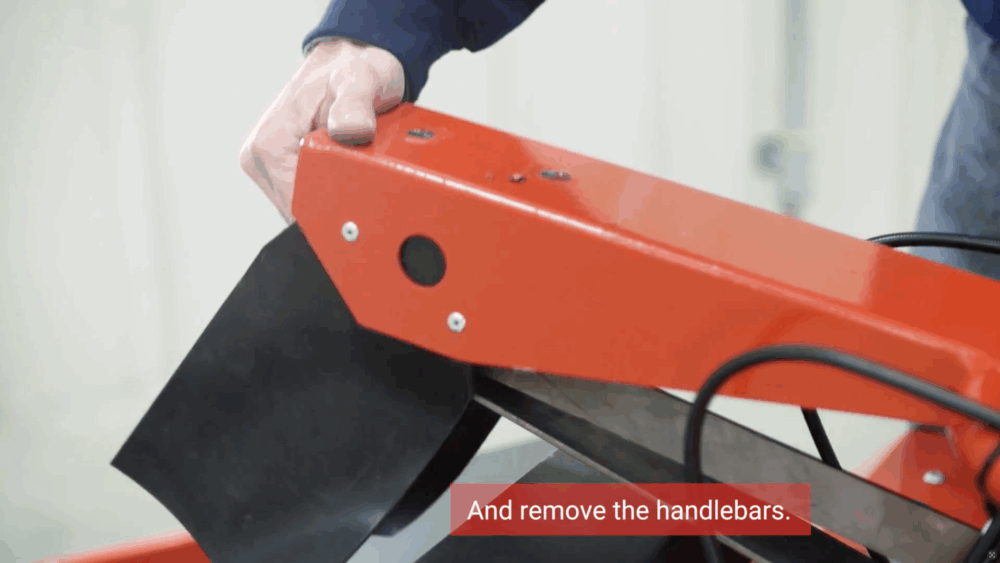

#2 Remove the handlebars.

#2 Remove the handlebars.

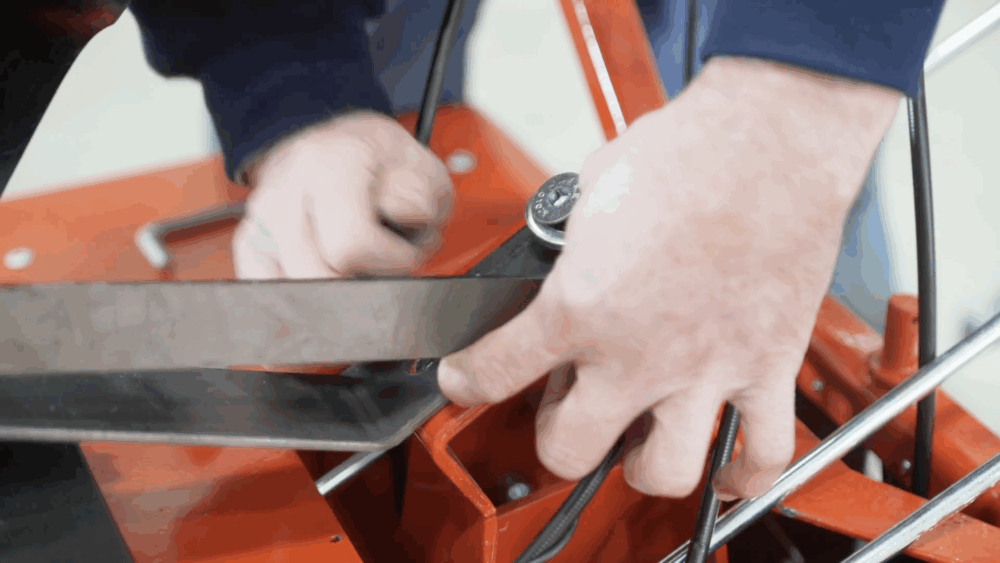

#3 Remove the metal arm by unscrewing the two screws that hold it to the main frame.

#3 Attach draw bar and set draw bar height.

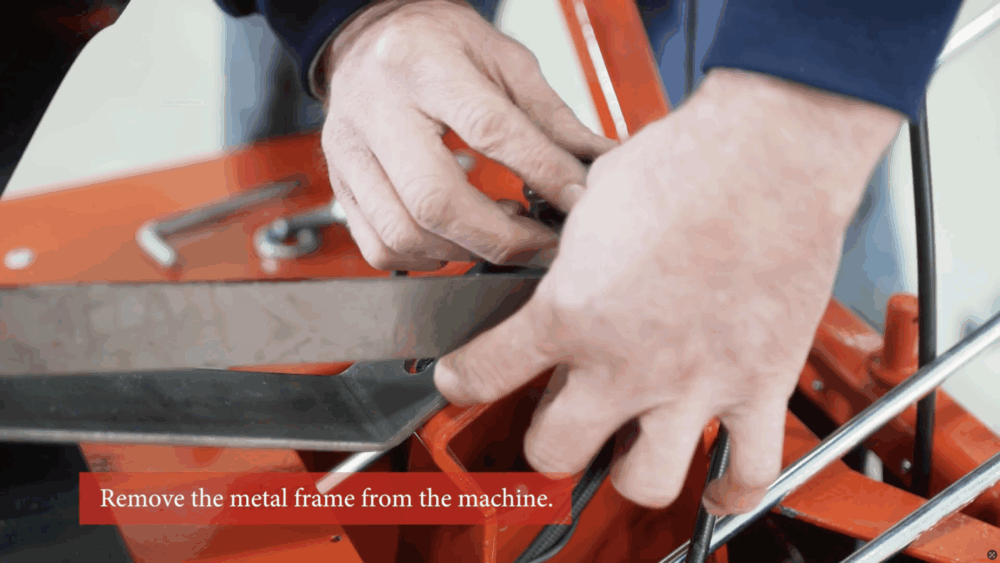

#4 Remove the metal frame from the machine.

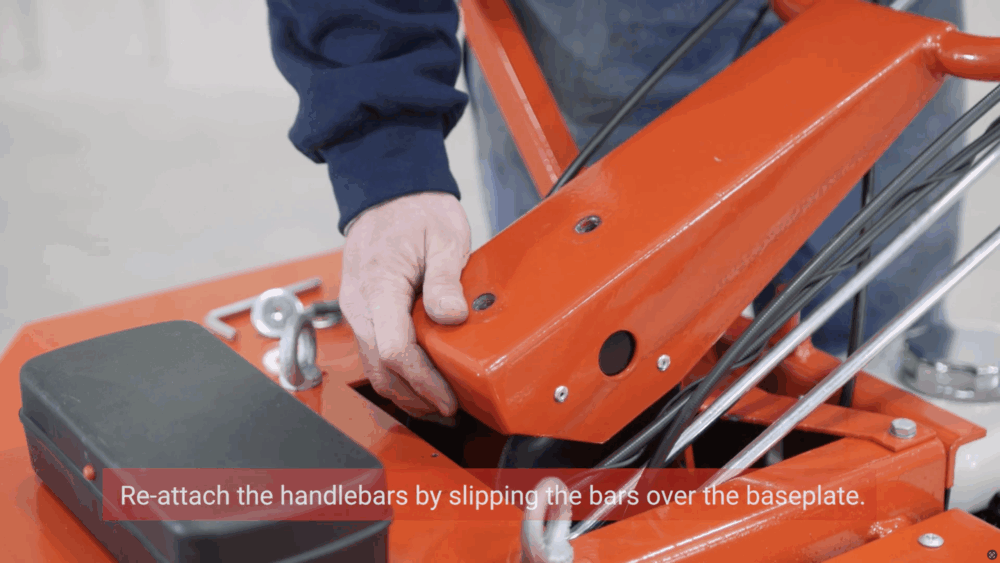

#5 Reattach the handlebars by slipping the bars over the base plate.

#5 Reattach the handlebars by slipping the bars over the base plate.

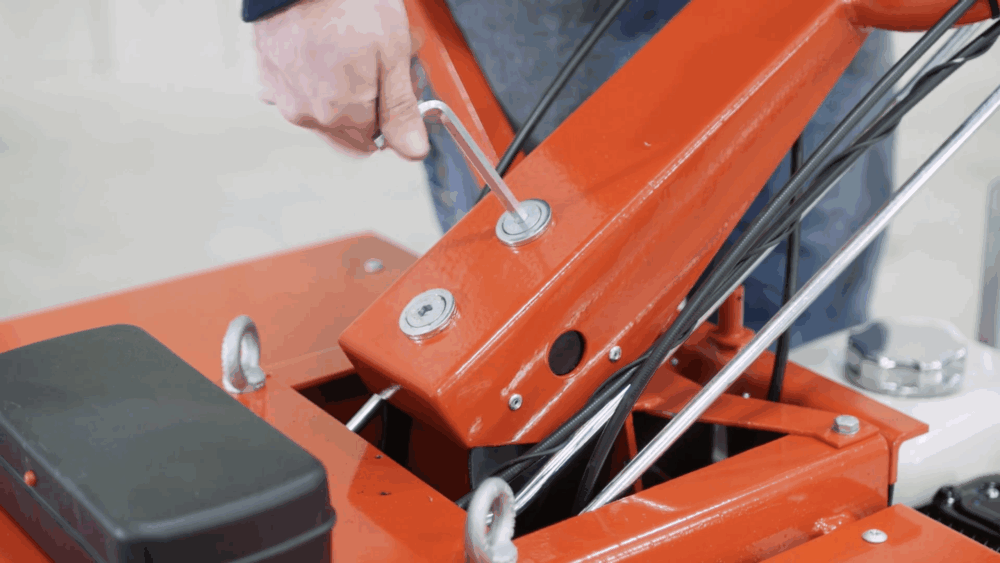

#6 Refasten the screws using the Allen wrench.

INSTALLING THE HAND WHEEL AND ARM

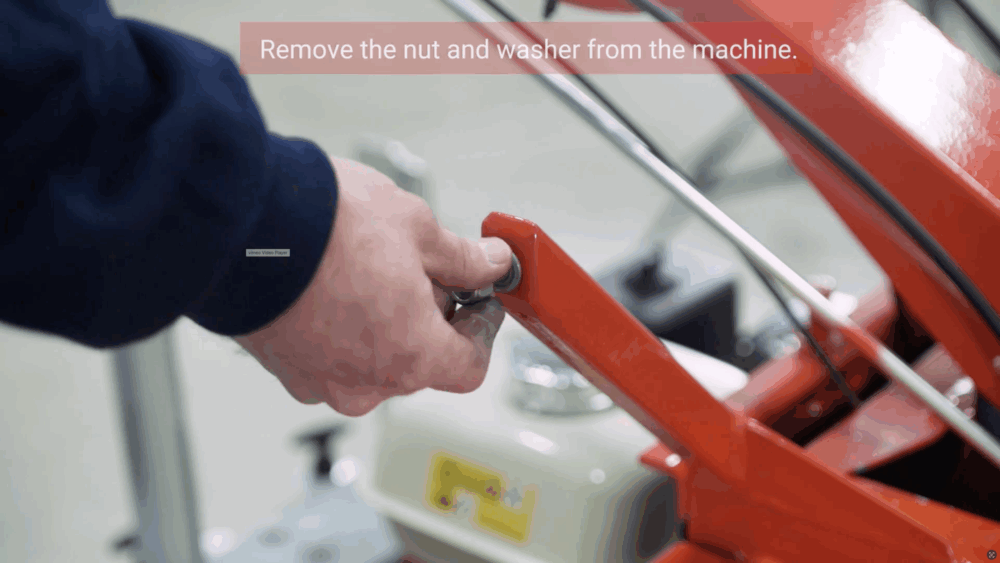

#1 Remove the nut and washer from the machine.

#1 Remove the nut and washer from the machine.

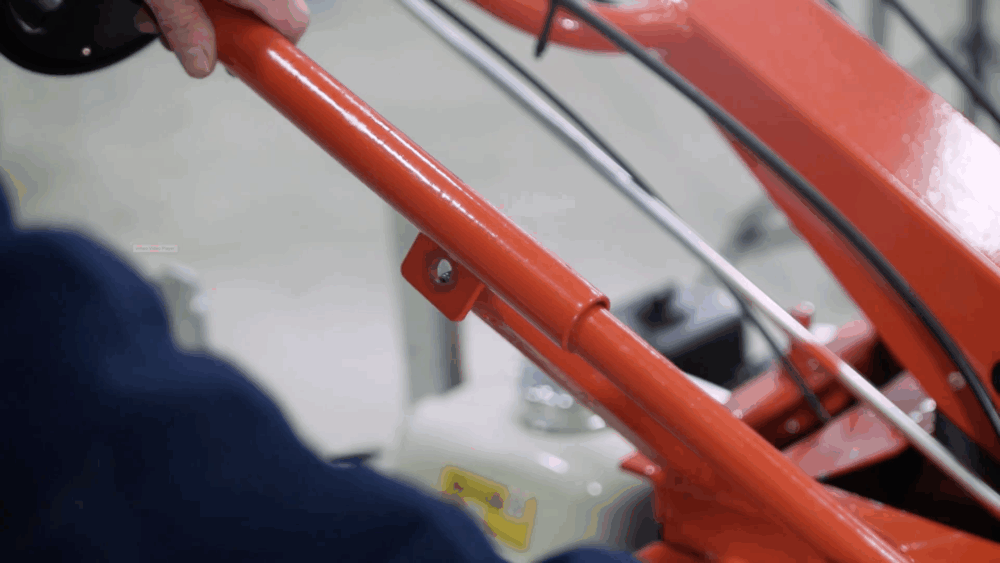

#2 Attach the upper part of the arm to the stud on the machine.

#2 Attach the upper part of the arm to the stud on the machine.

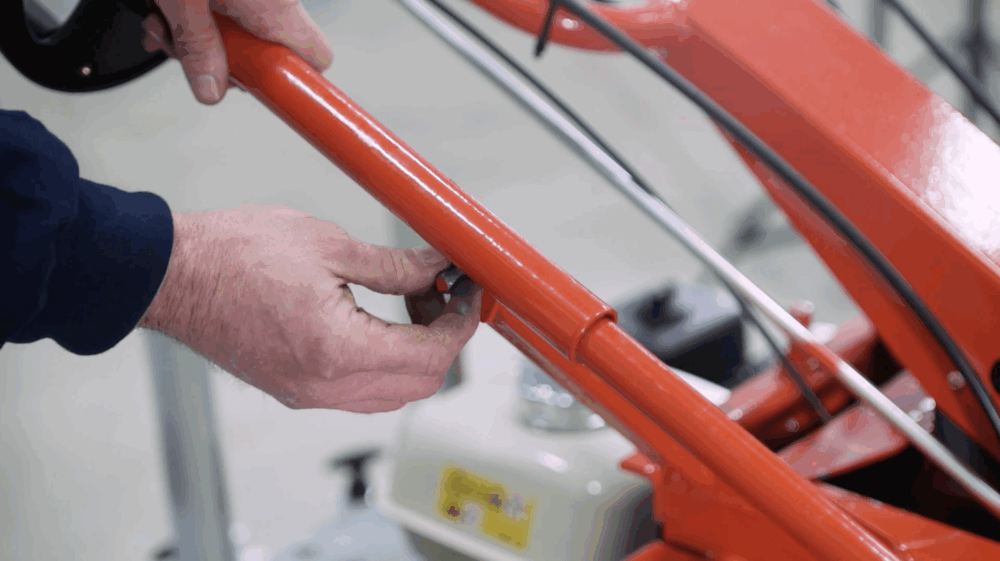

#3 Fasten with the washer and nut.

#3 Fasten with the washer and nut.

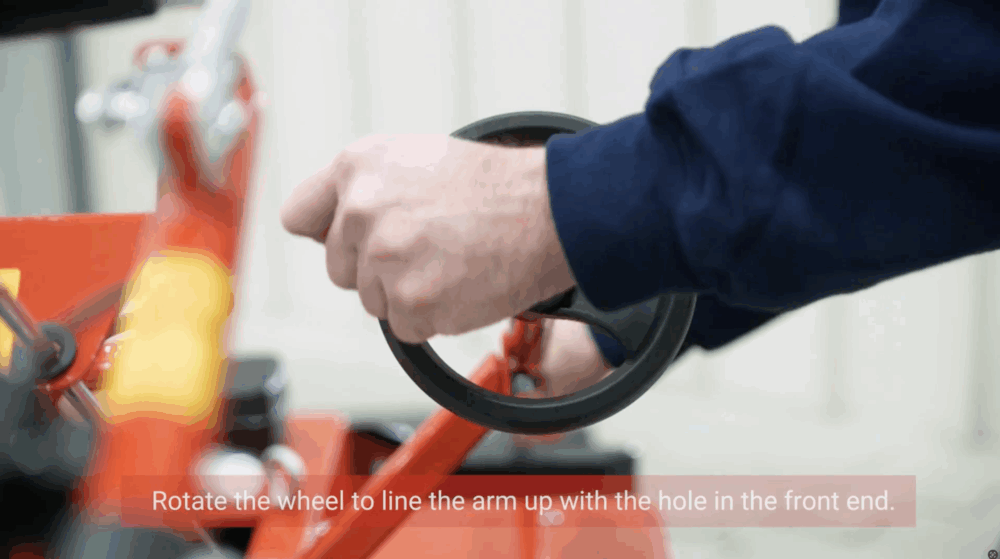

#4 Rotate the wheel to line the arm up with the hole in the front end.

#4 Rotate the wheel to line the arm up with the hole in the front end.

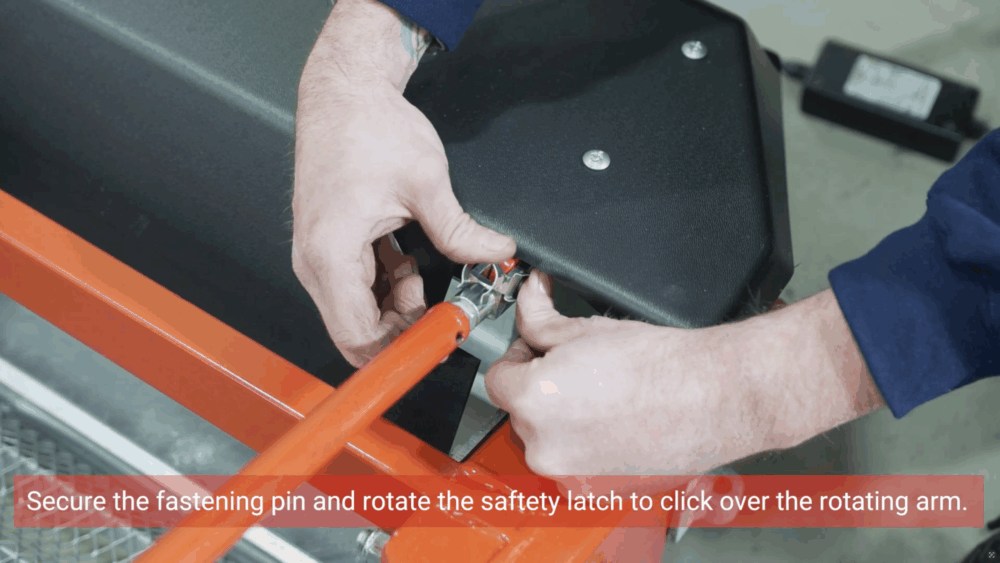

#5 Secure the fastening pin and rotate the safety latch to click over the rotating arm.

#5 Secure the fastening pin and rotate the safety latch to click over the rotating arm.
