Installing Attachments to the Sand Man 850

Play Video

REQUIRED TOOLS

Adjustable Wrench

FREQUENCY

Once, upon receipt of the machine.

TRANSPORT WHEEL AND PLOW

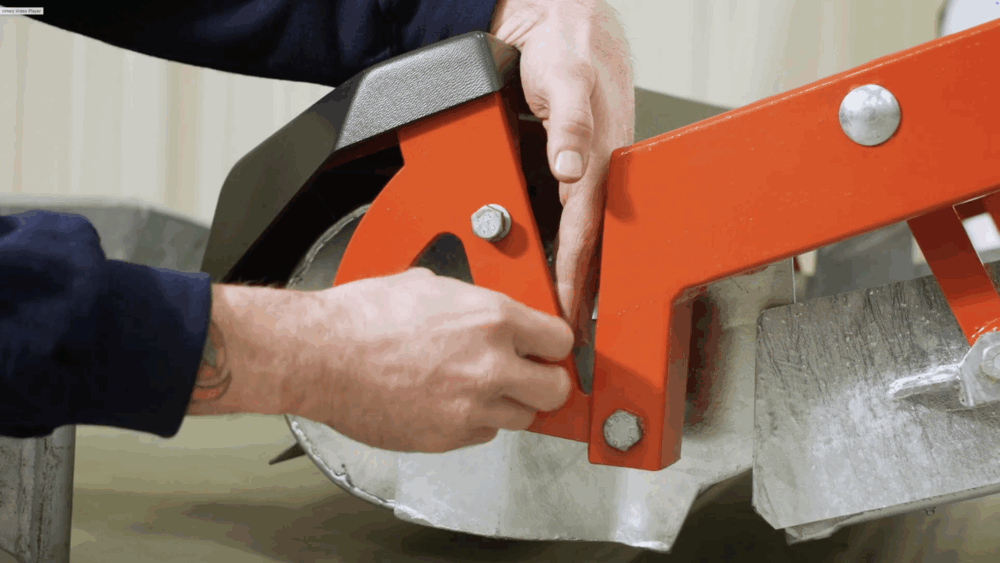

#1 Remove the screws by the beater bar on both sides of the Sand Man.

#1 Remove the screws by the beater bar on both sides of the Sand Man.

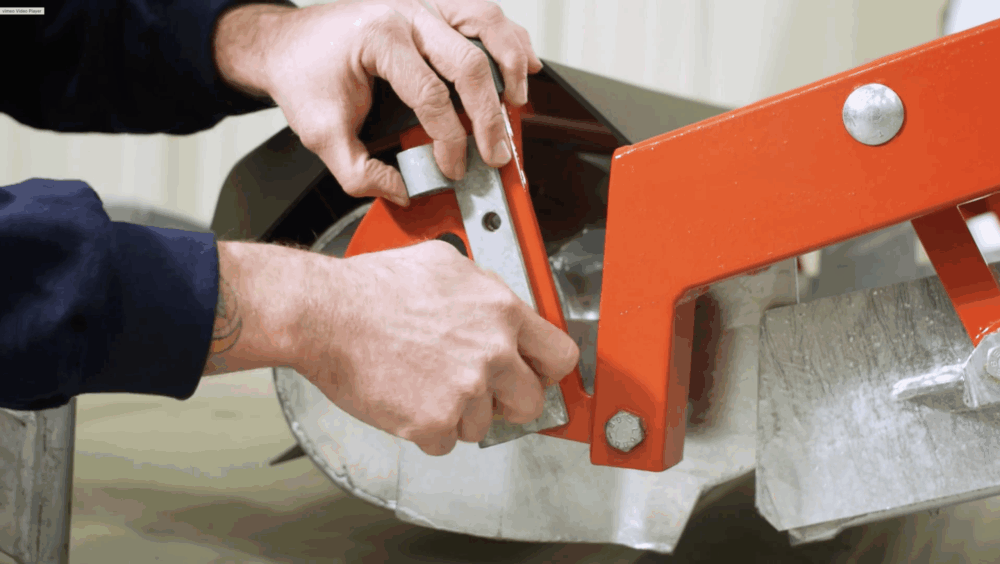

#2 Place an attachment bracket in line with the holes and refasten the screws.

#2 Place an attachment bracket in line with the holes and refasten the screws.

#4 Slide the front wheel attachment into the slot and secure it with the pin.

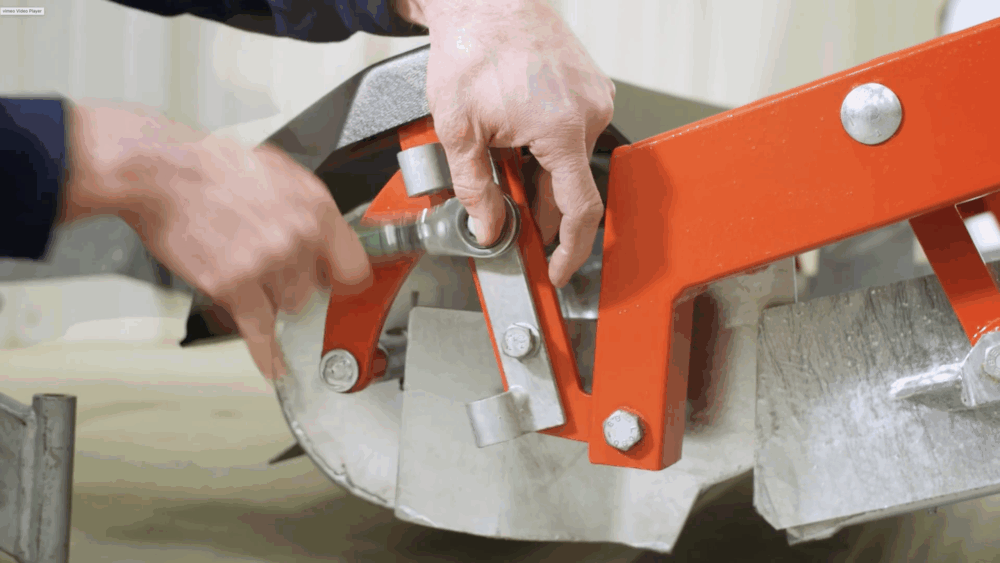

#3 Repeat on the second side.

#4 Slide the front wheel attachment into the slot and secure it with the pin.

#4 Slide the front wheel attachment into the slot and secure it with the pin.

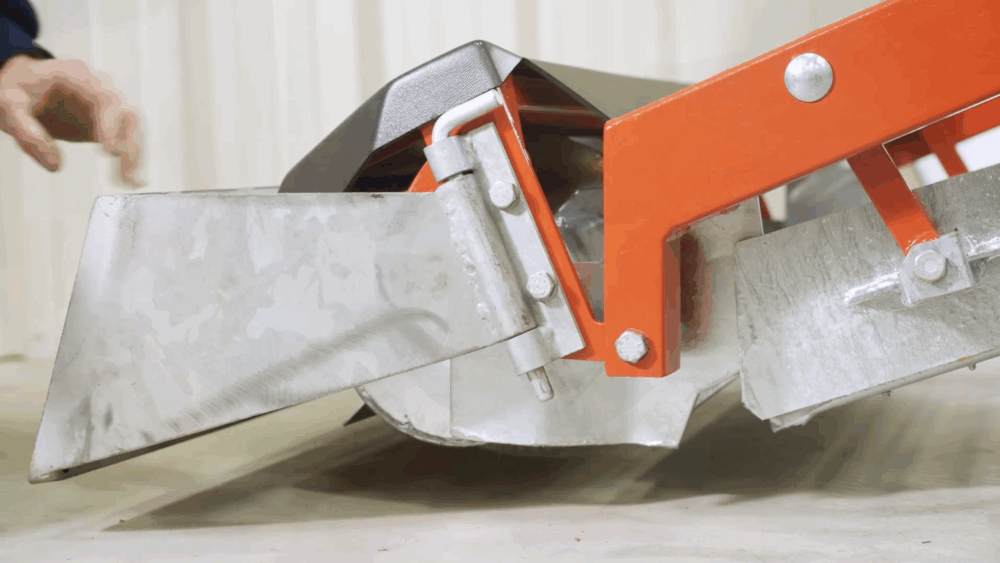

#5 Connect the Front Plow Attachment in the same way.

#5 Connect the Front Plow Attachment in the same way.

#6 Rotate the handle wheel to lower the front attachment for use.

#6 Rotate the handle wheel to lower the front attachment for use.

Riding Seat

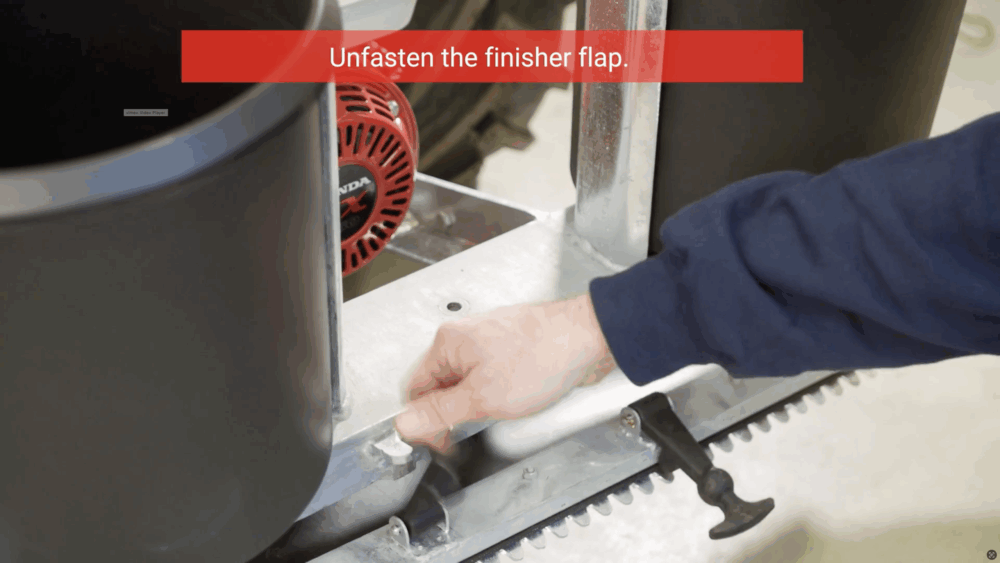

#1 Unfasten the finisher flap.

#1 Unfasten the finisher flap.

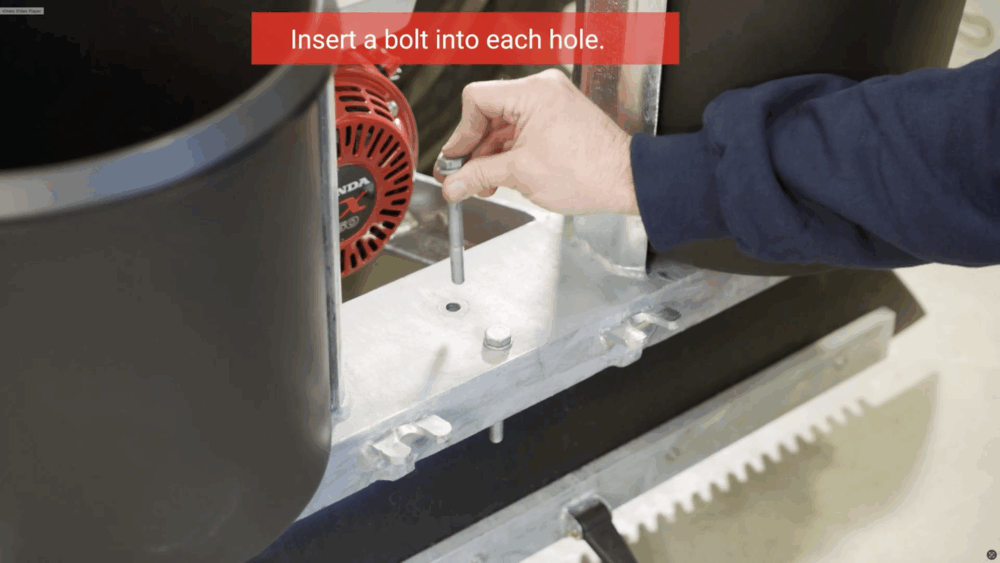

#2 Insert a bolt into each hole.

#2 Insert a bolt into each hole.

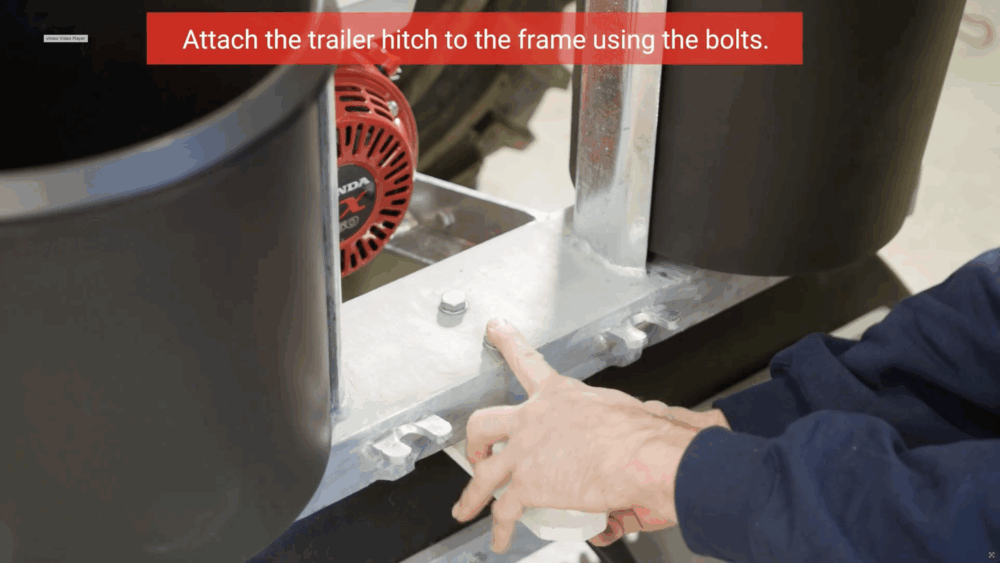

#3 Attach the trailer hitch to the frame using the bolts.

#3 Attach the trailer hitch to the frame using the bolts.

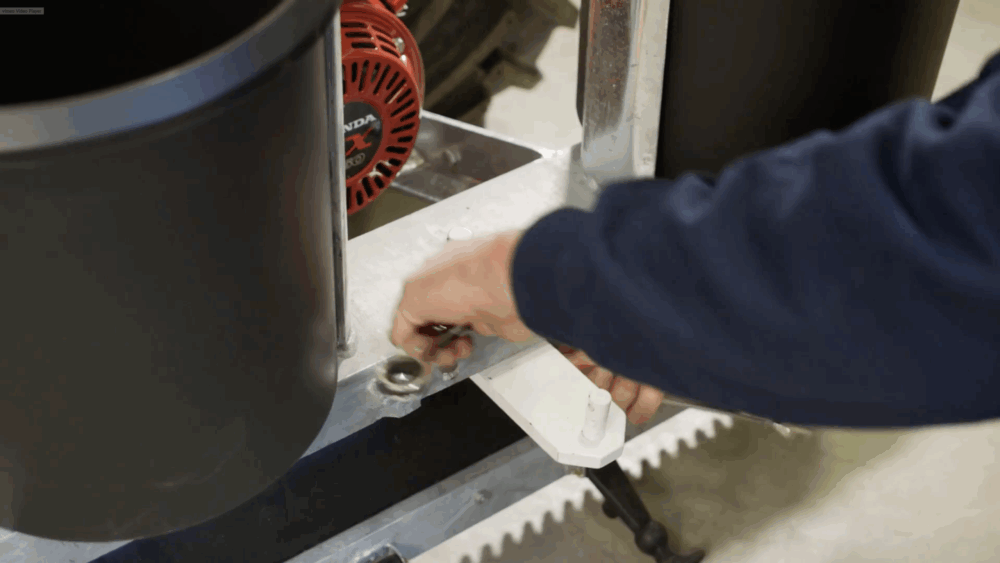

#4 Fasten the nuts on the bolts to hold the hitch in place.

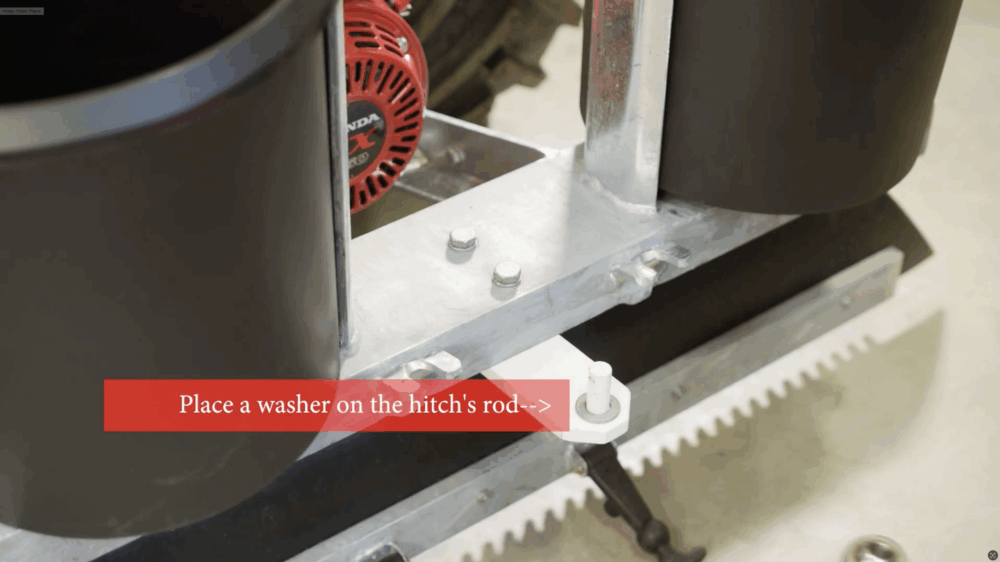

#5 Place a washer on the hitch’s rod.

#5 Place a washer on the hitch’s rod.

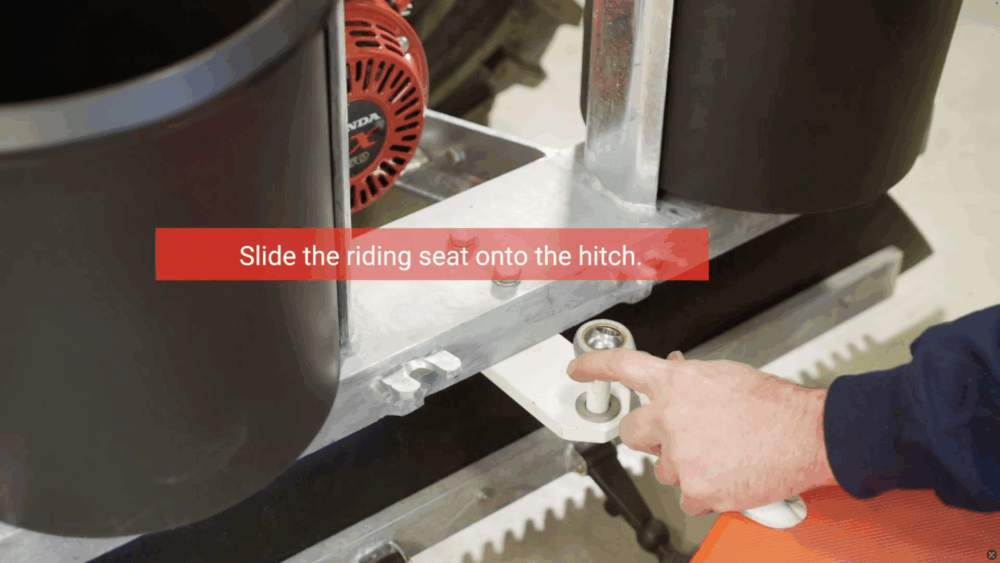

#6 Slide the riding seat onto the hitch.

#6 Slide the riding seat onto the hitch.

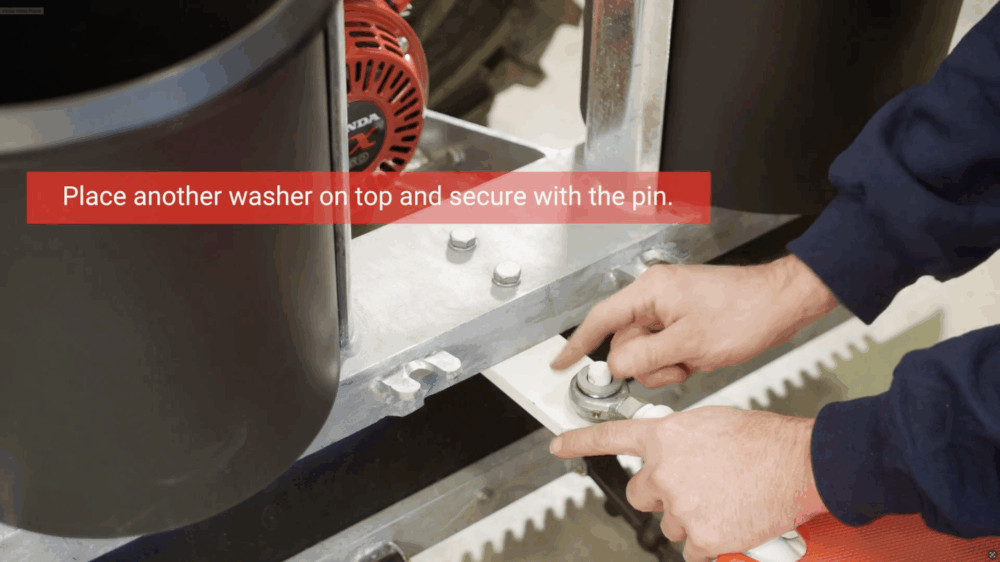

#7 Place another washer on top and secure with the pin.
