Road Rake Technical Specifications

MODEL 200

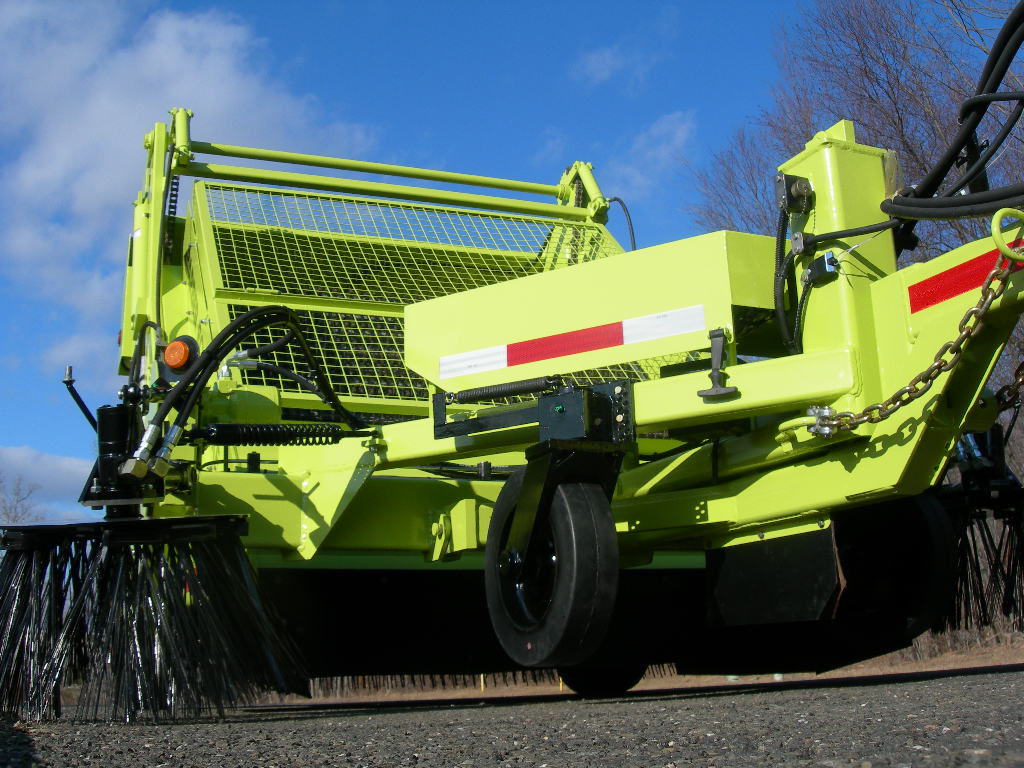

Road Rake Model 200
DIMENSIONS:
H: 8’5″ L: 15’8″ W: 8’4″
H: 2,6 m x L: 4,8m W: 2,5m
WEIGHT:
Approximately 6460 lbs
2930 kg
TONGUE WEIGHT:

1900 lbs

862 kg

CLEANING WIDTH:

9’10”-11’5″

3 m to 3,4 m

DUMPING HEIGHT:

8’7″

2,6 m
HOPPER CAPACITY:
4 cubic yards
3.05 cubic meters
CLEANING SPEED:
1 – 18 mph
1.6 to 29 kmph
HIGHWAY SPEED:
55 mph

85 kmph

TIRES:

235/85R/16
235/85R/16
DEBRIS REMOVED:

Retreads, mufflers, hubcaps, cardboard, wood, paper, cans, and other debris

DRIVE TRAIN:

21hp water-cooled diesel engine provides hydraulic power to the conveyor belt, gutter brooms, hitch, and bucket lift mechanisms. An electrical control box activates all functions.

TOWING VEHICLE:

Recommended: A one-ton pickup or larger truck with pintle hitch. A tractor may also tow the Road Rake Model 200.

APPLICATIONS:

Remove debris from roadsides, along curbs and barricades, parks, dirt parking lots, open fields, and stadiums.

WARRANTY:
H. Barber & Sons, Inc. warrants its Road Rake to be free from defects in parts and workmanship for a period of 500 hours or one year, whichever occurs first.

model 200t

road rake model 200t
DIMENSIONS:
H: 8’5″ L: 15’8″ W: 8’4″
H: 2,6 m x L: 4,8m W: 2,5m
WEIGHT:
Approximately 6000 lbs.
2722 kg
TONGUE WEIGHT:

1900 lbs.

862 kg

CLEANING WIDTH:

9’10”-11’5″

3 m to 3,4 m

DUMPING HEIGHT:

8’7″

2,6 m
HOPPER CAPACITY:
4 cubic yards
3.05 cubic meters
CLEANING SPEED:
1 – 18 mph
1.6 to 29 kmph
HIGHWAY SPEED:
55 mph

85 kmph

TIRES:

235/85R/16
235/85R/16
DEBRIS REMOVED:

Retreads, mufflers, hubcaps, cardboard, wood, paper, cans, and other debris

DRIVE TRAIN:

Hydraulically powered from rear remote valves on the towing truck, which drive the conveyor belt, gutter brooms, hitch, and bucket lift mechanisms. An electrical control box activates all functions.

TOWING VEHICLE:

Recommended: A one-ton pickup or larger truck with pintle hitch and hydraulic hookups. A tractor may also tow the Road Rake Model 200T.

APPLICATIONS:

Remove debris from roadsides, along curbs and barricades, parks, dirt parking lots, open fields, and stadiums.

WARRANTY:
H. Barber & Sons, Inc. warrants its Road Rake to be free from defects in parts and workmanship for a period of 500 hours or one year, whichever occurs first.
